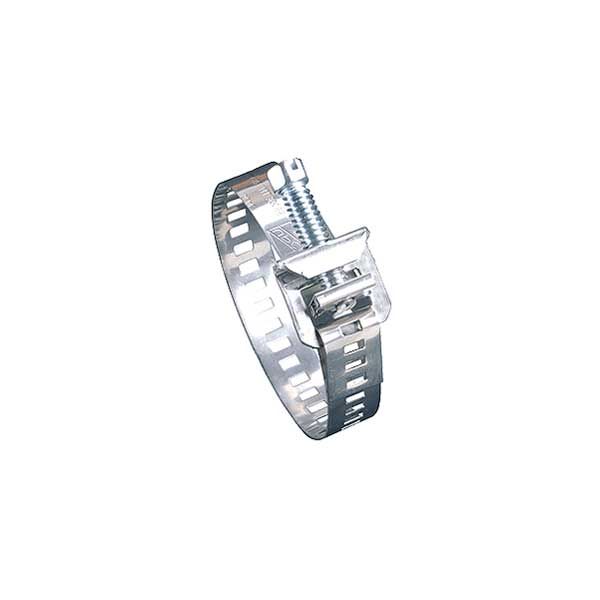

These Low Torque Installation 1/2" Screw Drive Clamps are ideal for extra tough installations requiring high sealing pressures. Their unique double-locking design provides extra security and high band tension for high sealing pressures. They are available in sizes from 11/16" to 7-1/4" clamping diameter.
Unit of Measure
Specifications
Type |
N/A Screw |
Band Width (Fractional) |
N/A 1/2 in |
Society of Automotive Engineers (SAE) Standard Size |
N/A 32 |
Length |
N/A 8.906 mm |
Hex Head Screw Size |
N/A 5/16 in |
Maximum Diameter |
N/A 5.625 in |
Minimum Diameter |
N/A 0.687 in |
Screw Band Housing Material |
N/A 300 Grade Stainless Steel (SS) |
Features and Benefits
Features and Benefits |
N/A These clamps come flat - easy to stock, easy to store, and you will never be without the right size clamp. This clamp at only 20 lbs. tightening torque on 160 PSI (high density) polyethylene pipe is half the torque generally applied to conventional worm drive clamps. Patented, offset buckle provides full circle sea. They conform to the contour of the pipe. |
