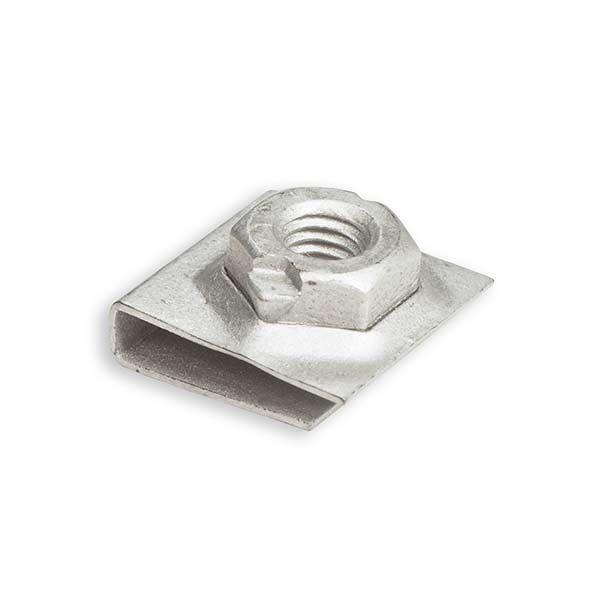

The U-Nut Retainer combines a spring steel retainer with a multi-threaded nut to provide an ideal fastener for heavy duty applications requiring high torque tightening, low fastener profile, "float" for hole misalignment and blind assembly. Available in U and J Types, these retainers are used for larger size screws in a variety of applications.
Unit of Measure
Specifications
Panel Thickness |
N/A 2.92 mm3.18 mm |
Screw Size |
N/A 10-24 |
Type |
N/A U |
Width |
N/A 17.45 mm |
Length |
N/A 18.04 mm |
Hole Diameter |
N/A 7.62 mm |
Throat Distance |
N/A 9.52 mm |
Features and Benefits
Features and Benefits |
N/A U-Nut Retainers are easily snapped over panel edges or inserted into rectangular holes in central-panel locations. Floating alignment and retention are attained with extrusions in the retaining legs that snap into panel mounting holes. This allows the fastener to shift or align, but not disengage. Applied after painting or porcelainizing, U-Nut Retainers eliminate the need for masking or re-tapping clogged threads. |
