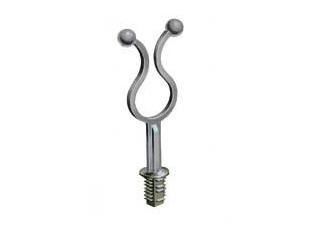

Standoff Twist Ties with a Tree Base will hold diameters from 0.400 up to 1.200 with standoff dimension of 0.125 clearance up to 0.937. The Tree design will easily press into a hole that locks the part in your panel. Minimum panel thickness range of 0.055.
Unit of Measure
Specifications
Maximum Mounting Hole Diameter |
N/A 0.325 in |
Minimum Mounting Hole Diameter |
N/A 0.312 in |
Maximum Bundle Size |
N/A 1.200 in |
Minimum Bundle Size |
N/A 1 in |
Maximum Panel Size |
N/A 0.055 in |
Installed Height |
N/A 2.153 in |
Standoff Height |
N/A 0.250 in |
Maximum Prong Size |
N/A 0.530 in |
Minimum Prong Size |
N/A 0.530 in |
Material |
N/A Nylon 6/6 |
Color1 | N/A Natural |
Features |
N/A Rectangular Ball Ends |
Features and Benefits
Features and Benefits |
N/A Standoff Twist Ties with a Tree Mount securely route bundles of wires and cables or tubing in particle board, wood, plastic, metal or compressible materials. Can be color-coded. The special design of the Tree-Mount allows you to simply push the tree portion into a predrilled hole. |
- 1 Other colors available, minimums may apply.
