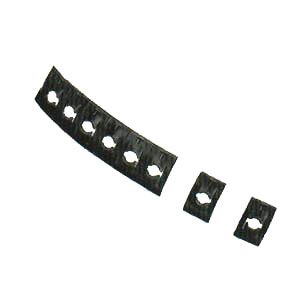

Threaded Tandem-Type Bolt Retainers
Shaft & Bolt Retainers
Tandem-Type Bolt Retainers save assembly time and cost by eliminating lost motion in selecting and applying fasteners in a manufacturing line or where numerous fastening locations occur on a single assembly.
Item # |
Item Name |
Thread Size |
Material Thickness (Decimal) |
Length |
---|---|---|---|---|
01C78001420 | N/A 1/4-20 Thread Size Threaded Tandem-Type Bolt Retainer | Thread Size N/A 1/4-20 | Material Thickness (Decimal) N/A 0.025 in | Length N/A 0.850 in |
01C78001420000 | N/A 1/4-20 Thread Size Threaded Tandem-Type Bolt Retainer | Thread Size N/A 1/4-20 | Material Thickness (Decimal) N/A 0.025 in | Length N/A 0.850 in |
01C7800632 | N/A 6-32 Thread Size Threaded Tandem-Type Bolt Retainer | Thread Size N/A 6-32 | Material Thickness (Decimal) N/A 0.017 in | Length N/A 0.440 in |
01C7800632000 | N/A 6-32 Thread Size Threaded Tandem-Type Bolt Retainer | Thread Size N/A 6-32 | Material Thickness (Decimal) N/A 0.017 in | Length N/A 0.440 in |
01C78006 | N/A 6A and 6B Thread Size Threaded Tandem-Type Bolt Retainer | Thread Size N/A 6A 6B | Material Thickness (Decimal) N/A 0.025 in | Length N/A 0.440 in |
01C78006000 | N/A 6A|6B Thread Size Threaded Tandem-Type Bolt Retainer | Thread Size N/A 6A 6B | Material Thickness (Decimal) N/A 0.025 in | Length N/A 0.440 in |
01C7800832 | N/A 8-32 Thread Size Threaded Tandem-Type Bolt Retainer | Thread Size N/A 8 - 32 | Material Thickness (Decimal) N/A 0.017 in | Length N/A 0.490 in |
01C7800832000 | N/A 8-32 Thread Size Threaded Tandem-Type Bolt Retainer | Thread Size N/A 8 - 32 | Material Thickness (Decimal) N/A 0.017 in | Length N/A 0.490 in |
01C78008 | N/A 8A|8B Thread Size Threaded Tandem-Type Bolt Retainer | Thread Size N/A 8A 8B | Material Thickness (Decimal) N/A 0.028 in | Length N/A 0.500 in |
01C78008000 | N/A 8A|8B Thread Size Threaded Tandem-Type Bolt Retainer | Thread Size N/A 8A 8B | Material Thickness (Decimal) N/A 0.028 in | Length N/A 0.500 in |
01C78001024 | N/A 10-24 Thread Size Threaded Tandem-Type Bolt Retainer | Thread Size N/A 10-24 | Material Thickness (Decimal) N/A 0.022 in | Length N/A 0.610 in |
01C78001024000 | N/A 10-24 Thread Size Threaded Tandem-Type Bolt Retainer | Thread Size N/A 10-24 | Material Thickness (Decimal) N/A 0.022 in | Length N/A 0.610 in |
01C780010 | N/A 10A and 10B Thread Size Threaded Tandem-Type Bolt Retainer | Thread Size N/A 10A 10B | Material Thickness (Decimal) N/A 0.031 in | Length N/A 0.740 in |
01C780010000 | N/A 10A and 10B Thread Size Threaded Tandem-Type Bolt Retainer | Thread Size N/A 10A 10B | Material Thickness (Decimal) N/A 0.031 in | Length N/A 0.740 in |
