Standard Plastic Ratchet Type Hose Clamps
Latching, Quick Release and Ratchet Clamps

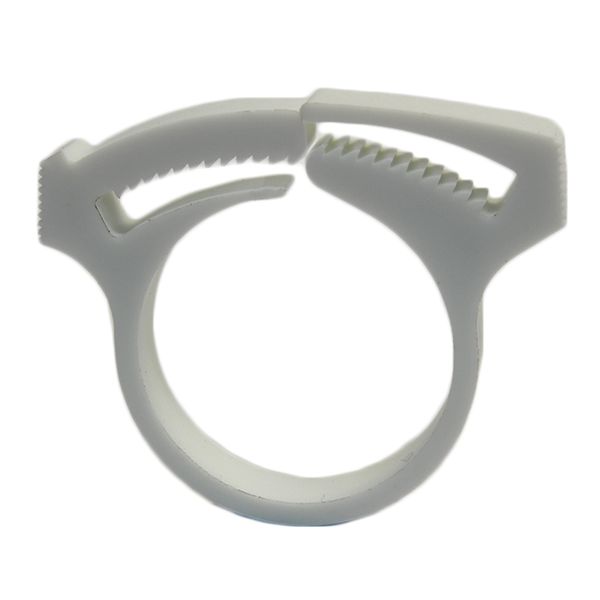

Standard Nylon Ratchet Hose Clamps are based on the original design for this type of fastener. An overlapping tapered ring of nylon is fastened around the hose or tubing desired and secured to the required tightness by compressing interacting grooves in a ratcheting fashion, creating a tight sealing application. Clamps are reusable. They can be removed by separating the clamping halves in a perpendicular direction at the seal.
Item # |
Item Name |
Width |
Thickness (Decimal) |
Maximum Holding Diameter T |
|---|---|---|---|---|
| 34300307-P01 | N/A 6.40 Millimeter (mm) Minimum Holding Diameter T Standard Plastic Ratchet Type Hose Clamp | Width N/A 0.130 in3.30 mm | Thickness (Decimal) N/A 0.060 in1.5 mm | Maximum Holding Diameter T N/A 0.313 in7.90 mm |
| 34300308-A02 | N/A 9.10 Millimeter (mm) Minimum Holding Diameter T Standard Plastic Ratchet Type Hose Clamp | Width N/A 0.220 in5.60 mm | Thickness (Decimal) N/A 0.070 in1.8 mm | Maximum Holding Diameter T N/A 0.391 in9.90 mm |
| 34300309-A02 | N/A 9.90 Millimeter (mm) Minimum Holding Diameter T Standard Plastic Ratchet Type Hose Clamp | Width N/A 0.220 in5.60 mm | Thickness (Decimal) N/A 0.070 in1.8 mm | Maximum Holding Diameter T N/A 0.469 in11.90 mm |
| 34300310-A02 | N/A 11.90 Millimeter (mm) Minimum Holding Diameter T Standard Plastic Ratchet Type Hose Clamp | Width N/A 0.220 in5.60 mm | Thickness (Decimal) N/A 0.070 in1.8 mm | Maximum Holding Diameter T N/A 0.531 in13.50 mm |
| 34300311-A02 | N/A 13.50 Millimeter (mm) Minimum Holding Diameter T Standard Plastic Ratchet Type Hose Clamp | Width N/A 0.220 in5.60 mm | Thickness (Decimal) N/A 0.070 in1.8 mm | Maximum Holding Diameter T N/A 0.594 in15.10 mm |
| 34300312-A02 | N/A 15.10 Millimeter (mm) Minimum Holding Diameter T Standard Plastic Ratchet Type Hose Clamp | Width N/A 0.220 in5.60 mm | Thickness (Decimal) N/A 0.070 in1.8 mm | Maximum Holding Diameter T N/A 0.656 in16.70 mm |
| 34300315-A02 | N/A 22.20 Millimeter (mm) Minimum Holding Diameter T Standard Plastic Ratchet Type Hose Clamp | Width N/A 0.220 in5.60 mm | Thickness (Decimal) N/A 0.070 in1.8 mm | Maximum Holding Diameter T N/A 1.000 in25.40 mm |
| 34300316-A02 | N/A 24.20 Millimeter (mm) Minimum Holding Diameter T Standard Plastic Ratchet Type Hose Clamp | Width N/A 0.310 in7.90 mm | Thickness (Decimal) N/A 0.070 in1.8 mm | Maximum Holding Diameter T N/A 1.094 in27.80 mm |
| 34300317-A02 | N/A 26.20 Millimeter (mm) Minimum Holding Diameter T Standard Plastic Ratchet Type Hose Clamp | Width N/A 0.310 in7.90 mm | Thickness (Decimal) N/A 0.070 in1.8 mm | Maximum Holding Diameter T N/A 1.187 in30.20 mm |
| 34300318-A02 | N/A 31.80 Millimeter (mm) Minimum Holding Diameter T Standard Plastic Ratchet Type Hose Clamp | Width N/A 0.310 in7.90 mm | Thickness (Decimal) N/A 0.070 in1.8 mm | Maximum Holding Diameter T N/A 1.437 in36.50 mm |
| 34300319-A02 | N/A 35.70 Millimeter (mm) Minimum Holding Diameter T Standard Plastic Ratchet Type Hose Clamp | Width N/A 0.360 in9.10 mm | Thickness (Decimal) N/A 0.070 in1.8 mm | Maximum Holding Diameter T N/A 1.625 in41.30 mm |
| 34300320-A02 | N/A 40.50 Millimeter (mm) Minimum Holding Diameter T Standard Plastic Ratchet Type Hose Clamp | Width N/A 0.360 in9.10 mm | Thickness (Decimal) N/A 0.070 in1.8 mm | Maximum Holding Diameter T N/A 1.812 in46.00 mm |
| 34300321-A02 | N/A 43.30 Millimeter (mm) Minimum Holding Diameter T Standard Plastic Ratchet Type Hose Clamp | Width N/A 0.360 in9.10 mm | Thickness (Decimal) N/A 0.070 in1.8 mm | Maximum Holding Diameter T N/A 2.031 in51.60 mm |
| 34300322-A02 | N/A 47.60 Millimeter (mm) Minimum Holding Diameter T Standard Plastic Ratchet Type Hose Clamp | Width N/A 0.400 in10.20 mm | Thickness (Decimal) N/A 0.070 in1.8 mm | Maximum Holding Diameter T N/A 2.125 in54.00 mm |
| 34300323-A02 | N/A 54.00 Millimeter (mm) Minimum Holding Diameter T Standard Plastic Ratchet Type Hose Clamp | Width N/A 0.400 in10.20 mm | Thickness (Decimal) N/A 0.070 in1.8 mm | Maximum Holding Diameter T N/A 2.375 in60.30 mm |
| 20602007-A010I | N/A 19.10 Millimeter (mm) Minimum Holding Diameter T Standard Plastic Ratchet Type Hose Clamp | Width N/A 0.220 in5.60 mm | Thickness (Decimal) N/A 0.070 in1.8 mm | Maximum Holding Diameter T N/A 0.812 in22.20 mm |
| 20603007-A010I | N/A 17.50 Millimeter (mm) Minimum Holding Diameter T Standard Plastic Ratchet Type Hose Clamp | Width N/A 0.220 in5.60 mm | Thickness (Decimal) N/A 0.070 in1.8 mm | Maximum Holding Diameter T N/A 0.812 in20.60 mm |
| 20602003-A03I | N/A 8.70 Millimeter (mm) Minimum Holding Diameter T Standard Plastic Ratchet Type Hose Clamp | Width N/A 0.21 in5.3 mm | Thickness (Decimal) N/A 0.070 in1.8 mm | Maximum Holding Diameter T N/A 0.410 in10.30 mm |
