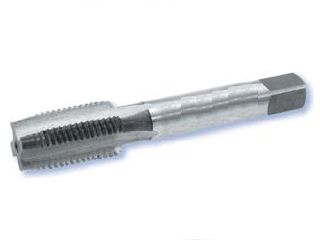

PG Thread Taps for steel conduit threads per DIN 40430 are available in 7 sizes. Use a starting tap for through-hole applications.
Unit of Measure

Specifications

Material1 N/A High Speed Steel

Thread Size

 N/A 21 mm

Thread Type

 N/A PG

Overall Length

 N/A 90.00 mm

Major Diameter

 N/A 28.30 mm

Tap Drill Diameter

 N/A 27.00 mm

Tap Type

 N/A Finishing

Thread Length

 N/A 22.00 mm

Flank Angle

 N/A 80 º

Features and Benefits

Features and Benefits

 N/A
  • For blind holes, thread first with a starting tap; finish bottoming the threads with a finishing tap.
  • Suitable for cutting alloy steel, bronze and stainless.
  • 1 With ground threads for greater accuracy to assure optimum performance.
