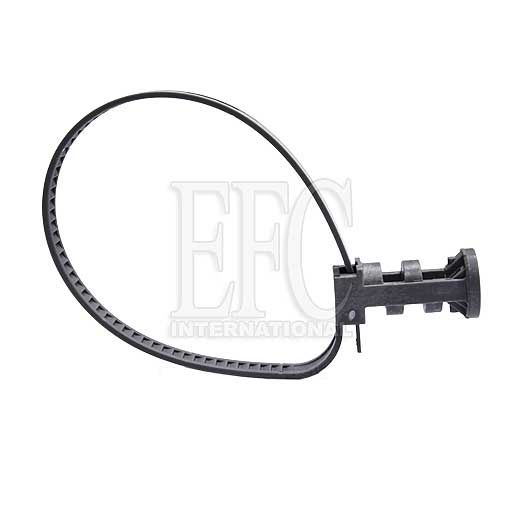

Stud Mount Cable Ties provide superior holding ability on a threaded stud. They self-lock onto the threads of a screw or stud with no nut required. Like standard cable ties, they are available in a wide range bundle diameters to secure wire, cable and tubes.
Unit of Measure

Specifications

Stud Diameter

 N/A 5.0 to 6.0 mm

Bundle Diameter

 N/A 9.0 to 34.0 mm

Insertion Force

 N/A 45 N

Tie Length

 N/A 160.9 mm

Tie Width

 N/A 6.0 mm

Material

 N/A Heat-Stabilized Nylon 6/6

Original Equipment Manufacturer (OEM) Reference

 N/A 15304748 - 52124076AA

Features and Benefits

Features and Benefits

 N/A
  • Flexible strap
  • Mount provides low insertion and high extraction forces
  • High performance, heat stabilized nylon 6/6
  • Easy-to-install

Note

Note

 N/A Please contact an EFC representative for style and color availability.
