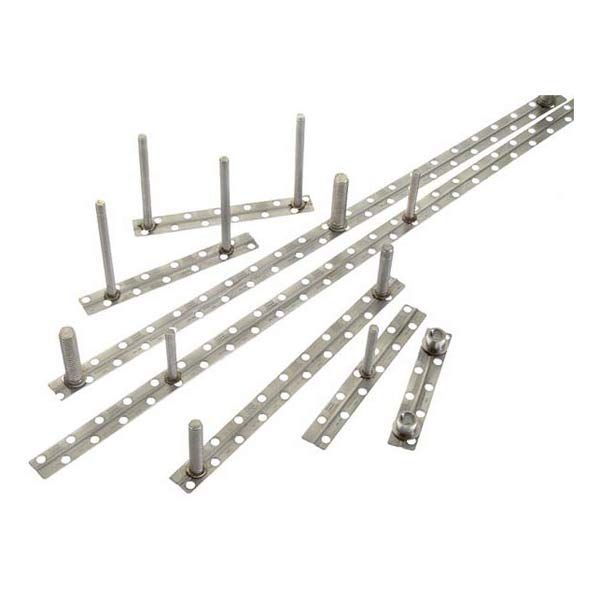

BigStrip® Studs are perfect for those occasions when it is inconvenient to use individual bigHead® Studs. They are jig-built to very high tolerances and consist of any number of studs welded to a 16 mm wide metal strip. Thus, they enable rows of studs to be mounted or positioned with extreme accuracy and speed. They are made in 1 meter lengths but can be cropped or welded together for longer needs. Additionally, these can be supplied with male, female, threaded or unthreaded components in virtually any combination to suit your specific needs. Since these fasteners are made to order, the parts pictured are intended as reference only.
Unit of Measure
Features and Benefits
Features and Benefits |
N/A BigStrip® Studs are particularly useful when working with materials like gypsum that have a very short pot life and which set hard in a few minutes. In these instances, it would be difficult to locate several separate bigHead® Studs accurately in the short time available. bigHead® fasteners are load-distributing anchorages, designed originally for plastics but now used widely throughout industry in metal fabrication and assembly. They provide a complete and versaBile fastening system for such specialized molding techniques as rotational, injection, GRP and many others. They are available in male or female, threaded and unthreaded forms, with nuts, collars, studs and more. They are made in bondable steel or 316S11 stainless steel. The holes are 5mm in diameter, located at 20mm centers, and alternate across a center line to which your desired fastening components are jigged and welded at set centers. |
