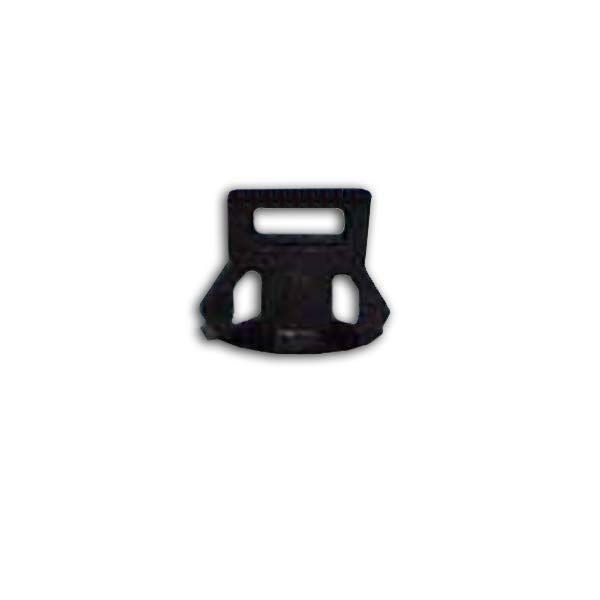

Dart Type Push Mount Cable Tie Holders are designed to be inserted from the front side of a panel as the fastening aspect of mounting a wire tie to a bundle of wires.
Unit of Measure
Specifications
Type |
N/A Dart |
Material |
N/A Nylon 6/6 (Heat-Stabilized) |
Color |
N/A Black |
Hole Diameter |
N/A 0.375 in9.53 mm |
Panel Thickness |
N/A 0.045 to 0.100 in1.1 to 2.5 mm |
Overall Height |
N/A 0.425 in10.80 mm |
Head Outside Diameter |
N/A 0.5 in12.7 mm |
Tolerance (±) |
N/A 0.010 in0.25 mm |
Overall Width |
N/A 3.80 mm0.150 in |
Standoff Height |
N/A 0.275 in7.00 mm |
Head Height |
N/A 0.040 in1.00 mm |
Tie Thickness |
N/A 0.075 in1.90 mm |
Tie Width |
N/A 0.210 in5.30 mm |
Mounting Type |
N/A Push |
Weight |
N/A 0.91 lb |
