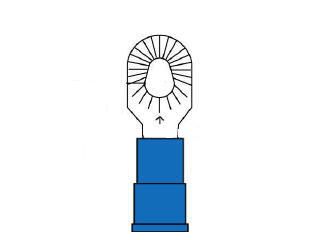

Multi-Stud Terminals are available in wire ranges of 22 through 10 AWG. With their ring-like shape, they still provide you most of the advantages of a Standard Ring Terminal, with the additional feature that allows them to be used with different stud sizes.
Unit of Measure
Specifications
Type |
N/A Ring |
Wire Size |
N/A 16/14 AWG |
Maximum Length |
N/A 1.148 in |
Barrel Style |
N/A Nylon Insulated Metal Sleeve |
Minimum Clearance |
N/A 0.330 in |
Maximum Width |
N/A 0.362 in |
Maximum Clearance |
N/A 0.447 in |
Barrel Features
Barrel Features |
N/A Strain Relief Against Vibration; Tin-Plated Brass Sleeve for High Performance; Color Coded Nylon Fully Insulates Wire; Funnel Entrance Prevents Wire from Folding; Ferrule/Wire Grip; Increases Crimping Rates; Enhances Wire Termination Reliability. |
Features and Benefits
Features and Benefits |
N/A Multi-Stud Terminals have an open-end design which permits quick visual inspection of the wire location before and after crimping. The screw must be completely removed in order for them to become disconnected. All Wire Ranges are clearly identified on the metal surfaces for your convenience. They are either serrated or dimpled to improve wire gripping power. Reinforcement has been added where the flat tongue has been formed into a round barrel. |
