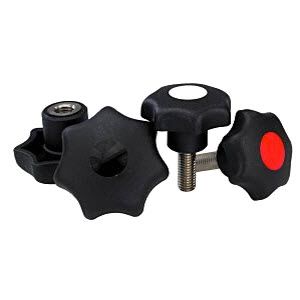

Star Grips provide firm sure ergonomic gripping with an attractive appearance. Choose from 5 styles, 4 cap colors and a multitude of sizes.
Unit of Measure

Specifications

Body Material

 N/A Black Thermoplastic

Threaded Bolt Material

 N/A Stainless Steel x 10 CrNis 18 9 = 1.4305

Material

 N/A Stainless Steel Thermoplastic Elastomers (TPE)

Style

 N/A External Thread

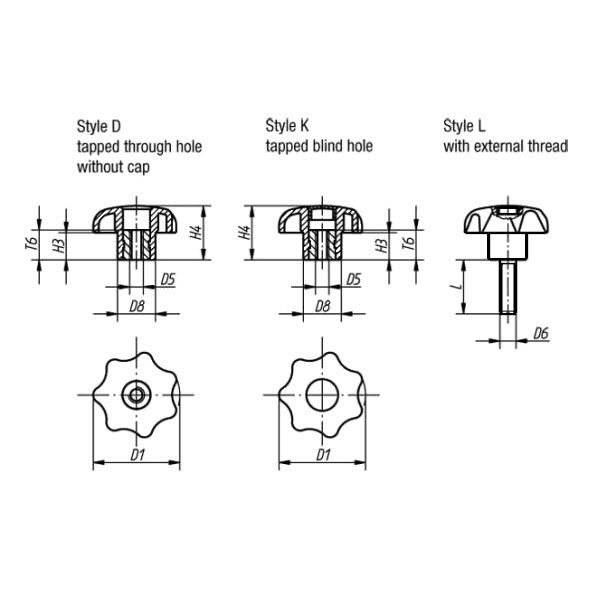

Dimension D1

 N/A 50 mm

Dimension D8

 N/A 22 mm

Dimension H3

 N/A 17 mm

Dimension H4

 N/A 32 mm

Dimension D6

 N/A 3/8-16

Screw Length

 N/A 40 mm

Cap Color

 N/A Black Light Gray Red Yellow

Additional Information

Additional Information

 N/A
  • Internally Threaded with blind reamed hole and bushing
  • Internally Threaded with tapped blind hole
  • Blind Reamed Hole with no bushing
  • Externally Threaded
  • Internally Threaded with tapped thru-hole

Features and Benefits

Features and Benefits

 N/A
  • Ergonomic Design
  • Firm Gripping
  • Attractive

Note

Note

 N/A Sizes and styles are a representative sampling of dozens of standard products to choose from. Contact EFC International for a complete listing of available products, options and specific combinations to meet your needs.
