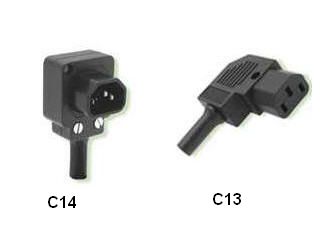

90° Angled AC Power Plug Assemblies are available in straight and 90° angled cable entry to easily convert a power cord into a detachable power cordset. 90° Angled comes in C13 and C14 gauges. For Straight AC Power Plug Assemblies, please refer to the "IEC Connectors and Power Outlets" section of our Electrical Encyclopedia.
Unit of Measure
Specifications
Plug Type |
N/A C13 |
Voltage |
N/A 250 V |
Current |
N/A 10 A |
Temperature Index |
N/A 65 ºC |
Material |
N/A Nylon 6/6 |
Color |
N/A Black |
Overall Height |
N/A 0.720 in18.00 mm |
Overall Length |
N/A 2.560 in65.00 mm |
Terminals |
N/A Screw |
Housing Width |
N/A 1.480 in37.60 mm |
Housing Length |
N/A 2.040 in51.80 mm |
Terminal Tabs Contacts |
N/A Nickel Plated |
Flammability Rating |
N/A 94V-0 |
Industry Standards/Certifications |
N/A Canadian Standards Association (CSA) Underwriter's Laboratories (UL) |
Features |
N/A Right Angle |
