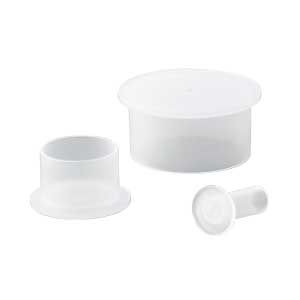

Flanged Plastic Caps for Metric Threads
Non-Threaded Caps
Flanged Plastic Caps for Metric Threads protect threads sizes M5 through M33 with and without o-rings. The diaphanous natural color allows visual verification of threads or o-ring. They are easy to attach or remove by hand or automated equipment.
Item # |
Item Name |
Inside Diameter |
Inside Length |
Flange Outside Diameter |
|---|---|---|---|---|
| 04MFCM5NA1 | N/A 0.193 Inch (in) Inside Diameter Flanged Plastic Cap for Metric Threads | Inside Diameter N/A 4.9 mm0.193 in | Inside Length N/A 0.591 in15 mm | Flange Outside Diameter N/A 0.492 in12.5 mm |
| 04MFCM6NA1 | N/A 0.232 Inch (in) Inside Diameter Flanged Plastic Cap for Metric Threads | Inside Diameter N/A 5.9 mm0.232 in | Inside Length N/A 0.787 in20.0 mm | Flange Outside Diameter N/A 0.532 in13.5 mm |
| 04MFCM8NA1 | N/A 0.309 Inch (in) Inside Diameter Flanged Plastic Cap for Metric Threads | Inside Diameter N/A 7.8 mm0.309 in | Inside Length N/A 0.787 in20.0 mm | Flange Outside Diameter N/A 0.610 in15.5 mm |
| 04MFCM10NA1 | N/A 0.384 Inch (in) Inside Diameter Flanged Plastic Cap for Metric Threads | Inside Diameter N/A 9.80 mm0.384 in | Inside Length N/A 0.323 in8.2 mm | Flange Outside Diameter N/A 0.689 in17.5 mm |
| 04MFCM12NA1 | N/A 0.463 Inch (in) Inside Diameter Flanged Plastic Cap for Metric Threads | Inside Diameter N/A 11.80 mm0.463 in | Inside Length N/A 0.47 in11.9 mm | Flange Outside Diameter N/A 0.768 in19.5 mm |
| 04MFCM14NA1 | N/A 0.540 Inch (in) Inside Diameter Flanged Plastic Cap for Metric Threads | Inside Diameter N/A 13.70 mm0.540 in | Inside Length N/A 0.47 in11.9 mm | Flange Outside Diameter N/A 0.846 in21.5 mm |
| 04MFCM16NA1 | N/A 0.617 Inch (in) Inside Diameter Flanged Plastic Cap for Metric Threads | Inside Diameter N/A 15.7 mm0.617 in | Inside Length N/A 0.47 in11.9 mm | Flange Outside Diameter N/A 0.925 in23.5 mm |
| 04MFCM18NA1 | N/A 0.696 Inch (in) Inside Diameter Flanged Plastic Cap for Metric Threads | Inside Diameter N/A 17.70 mm0.696 in | Inside Length N/A 0.47 in11.9 mm | Flange Outside Diameter N/A 1.004 in25.5 mm |
| 04MFCM20NA1 | N/A 0.774 Inch (in) Inside Diameter Flanged Plastic Cap for Metric Threads | Inside Diameter N/A 19.7 mm0.774 in | Inside Length N/A 0.553 in14.1 mm | Flange Outside Diameter N/A 1.083 in27.5 mm |
| 04MFCM22NA1 | N/A 0.855 Inch (in) Inside Diameter Flanged Plastic Cap for Metric Threads | Inside Diameter N/A 21.70 mm0.855 in | Inside Length N/A 0.553 in14.1 mm | Flange Outside Diameter N/A 1.161 in29.5 mm |
| 04MFCM1116NA1 | N/A 1.051 Inch (in) Inside Diameter Flanged Plastic Cap for Metric Threads | Inside Diameter N/A 26.70 mm1.051 in | Inside Length N/A 0.750 in19.1 mm | Flange Outside Diameter N/A 1.31 in33.3 mm |
| 04MFCM1316NA1 | N/A 1.175 Inch (in) Inside Diameter Flanged Plastic Cap for Metric Threads | Inside Diameter N/A 29.8 mm1.175 in | Inside Length N/A 0.750 in19.1 mm | Flange Outside Diameter N/A 1.440 in36.6 mm |
| 04MFCM33NA1 | N/A 1.285 Inch (in) Inside Diameter Flanged Plastic Cap for Metric Threads | Inside Diameter N/A 32.6 mm1.285 in | Inside Length N/A 0.689 in17.5 mm | Flange Outside Diameter N/A 1.594 in40.5 mm |
