Delta PT® Screws Providing optimal material flow in plastic material!

The successful PT® screw has been further developed - the Delta PT® screw provides optimum thread forming without any material damage. The screw provides better clamp loads and increased joint life in a wide range of plastic materials.
Unit of Measure

Specifications

Brands

N/A Delta PT®

Diameter

N/A 1.8 to 10 mm

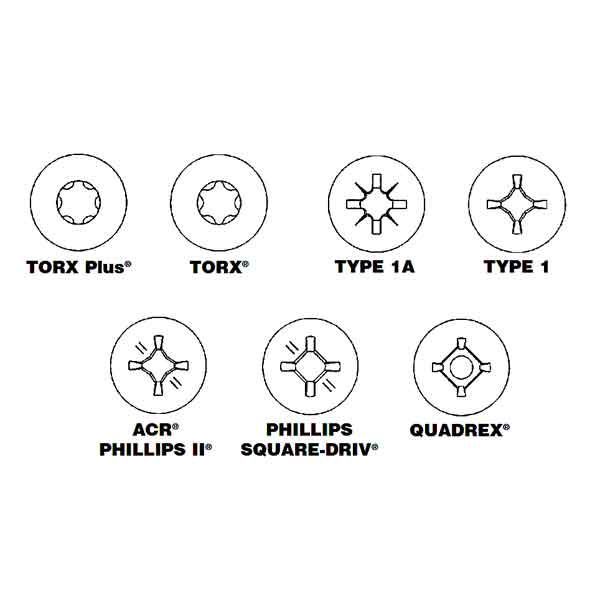

Recommended Drives

N/A ACR® Phillips II® Phillips Square-Driv® Quadrex® TORX Plus® TORX® Type 1 Type 1A

Material

N/A Stainless Steel

Thread Size

N/A D60

Finish

N/A Chrome Flash

Drive Style

N/A Torx T40

Length

N/A 20 mm

Head Type

N/A Pan

Major Diameter

N/A 6 mm

Original Equipment Manufacturer (OEM) Reference

N/A A 000 990 3262

Additional Information

Additional Information

N/A Delta PT® Screws optimize thread forming in plastic materials to
  • Minimize stress
  • Reduce boss size and
  • Increase fastening integrity
The Delta PT® thin thread technology for thermoplastics features a newly-designed multi compound 30° flank geometry to provide optimal material flow. Used in a wide range of thermoplastic materials.

Stocking Program
EFC stocks the following select parts:
25S9000435-G421 I40-1.46X12 FORD S424 120Hrs Salt Spray
25S9000436-FD1 I40-1.46X16 FORD S424 120Hrs Salt Spray
25S3000319-G29 I50-1.80X12 GMW4205 480Hrs Salt Spray
25S9000437-G18 I50-1.80X14 GMW4205 480Hrs Salt Spray
25S3000397-FD4 I50-1.80X16 FORD S437 384Hrs Salt Spray
25S9000439-FD4 I60-2.14X25 FORD S437 384Hrs Salt Spray
  • Stress is minimized on plastic host
  • Joint Life - Increased in both static & dynamic stress
  • Strength - Torsional & Tensional improve by up to 50% for the same nominal diameter
  • Shorter fasteners and smaller diameters
  • Load Distribution - increased head diameter
  • Eliminate Inserts
Calculation Program
Delta Calc is a program that can calculate a foregoing dimensioning of the joint. This program aids in the dimensioning of the fastener and assists you in determining the load carrying ability and forecasted life of the joint. Contact an EFC Representative to learn how Delta Calc can benefit your current applications.

Advantages

Advantages

N/A
  • Better clamp loads
  • Increased joint life
  • Improved vibrational safety
  • Improved dynamic safety by new shear area
  • Higher clamp load at smaller contact pressure
  • Increased flank engagement
