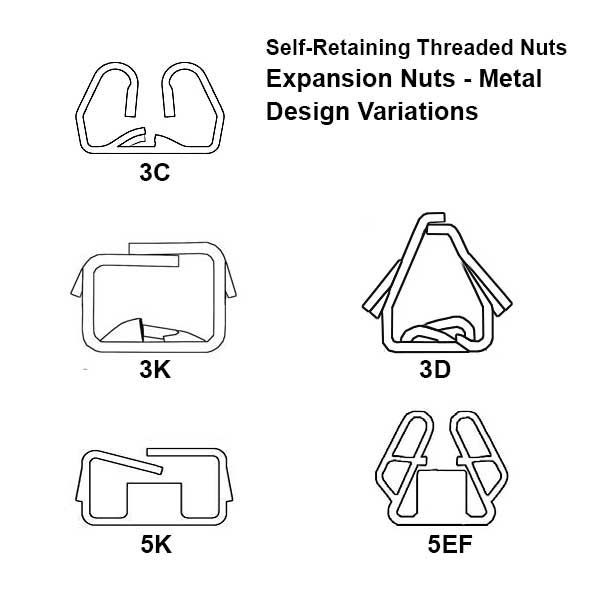

Expansion Nuts are vibration-resistant fasteners that provide quick attachment in blind or center-panel locations. These Expansion Nuts have spring legs for self-retaining in rectangular holes. If permanent retention is required, a special locking tab can be provided. Design variations accommodate box or robotics styles. Easy to apply, Expansion Nuts can be used in place of weld-, clinch-, or stake-type fasteners. No masking is required because they will not clog when painted either before or after installation.
Unit of Measure

Specifications

Panel Thickness

N/A 2.3 to 2.8 mm

Screw Size

N/A M4.2 x 1.41

Height

N/A 12.9 mm

Hole Length

N/A 9.1 mm

Hole Width

N/A 11.1 mm

Original Equipment Manufacturer (OEM) Reference

N/A FORD #W705093
