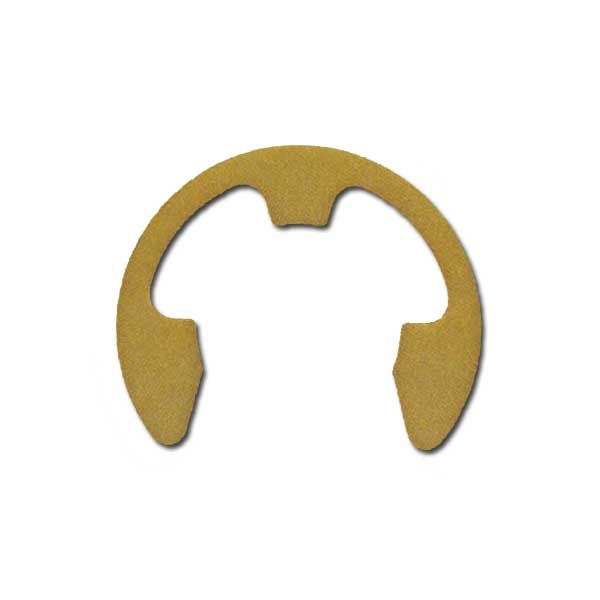

"E" Style, Radial Mount Retaining Rings are popular and widely used. The three prongs of the "E" profile make contact with the bottom of the groove of the shaft and provide a shoulder for effective retention of assemblies. The 2133-5133 family of External, Radial Mount Retaining Rings are available in shaft diameter sizes between 0.062 and 1.375 inches, and groove sizes between 0.052 and 1.230 inches. Ring thicknesses are between 0.010 and 0.062 inches. Most "E" rings can be installed by simply pushing them onto the slot on the shaft, using mounting pliers/installation tool.
Unit of Measure
Specifications
Brands |
N/A Beneri® |

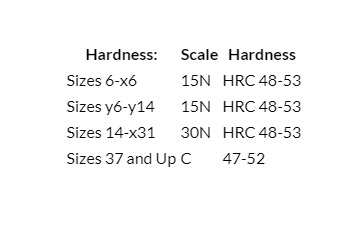

Material |
N/A Carbon Steel C60 (SAE 1060) |
| Finish1 | N/A Oil Phosphate |
Style |
N/A E-Clip |

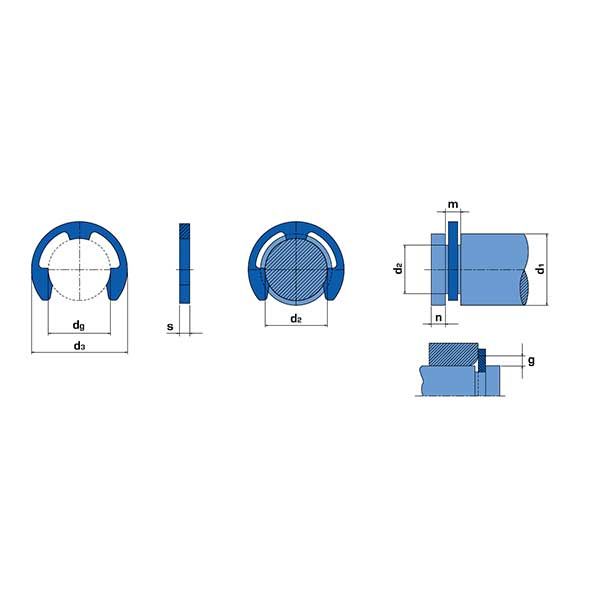

Diameter D2 |
N/A 0.580 in |
Depth |
N/A 0.085 in |
Free Diameter D3 |
N/A 1.120 in |
Ring Number |
N/A 75 |
Shaft Diameter D1 |
N/A 0.750 in |
Thickness (S) |
N/A 0.05 in |
Width (M) |
N/A 0.056 in |
Cross References
Cross References |
N/A
Do you have an existing retaining ring? EFC can provide cross references to most major manufactured brands. Assembly tools and other information are available upon request. EFC offers a complete and comprehensive offering of retaining rings for shaft and bores, external and internal, in both Inch and Metric sizes. Hundreds of different sizes and styles are available by contacting EFC International. |
- 1 Additional finishes available upon request.
