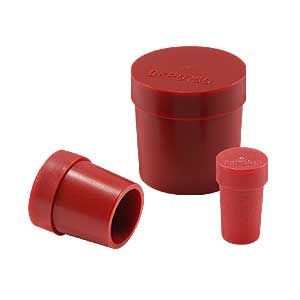

General Purpose Plugs for Type L and M Tubing fit applications where the outside diameter of the plug should not exceed the outside diameter of the tubing. The plug flange is designed to fit flush with the outside wall of the tubing.
Unit of Measure

Specifications

Material

 N/A Low-Density Polyethylene (LDPE)

Color

 N/A Red

Length

 N/A 0.380 in9.7 mm

Inside Diameter

 N/A 0.348 in8.80 mm

To Fit Tube Size

 N/A 1/2 in

Flange Outside Diameter

 N/A 0.5 in12.7 mm

Large Outside Diameter

 N/A 0.466 in11.8 mm

Small Outside Diameter

 N/A 0.411 in10.4 mm

Flange Thickness

 N/A 0.160 in4.1 mm

Features and Benefits

Features and Benefits

 N/A
  • Protects copper tubing from contaminants during production, shipping and storage
  • Commonly used in water supply and pressure applications
  • Sizes to fit 3/16 through 3/4 Type L and M tubing
