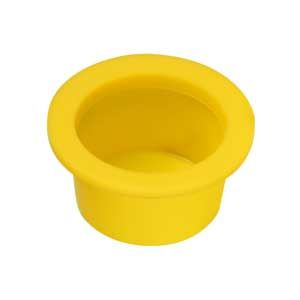

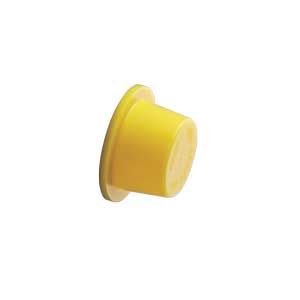

Thick Wide Flange Tapered Plug Caps are inexpensive fasteners with a dual function closure that can be used as either a plug or a cap. With a thicker and wider flange, it is easier to handle and prevents the plug from pushing through the opening.

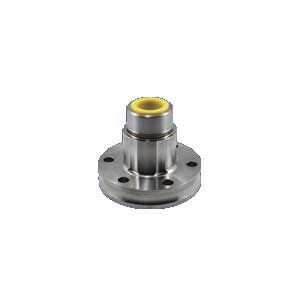

Thick Wide Flange Tapered Plug Caps meet aircraft, aerospace and defense industry standards. These Plug Caps are stocked in sizes to plug holes from 0.125" through 6.620" and to cap parts from 0.060" through 6.630" diameters. Recommended uses include tube and hydraulic fittings, tube end caps, pipe caps or product protection.
Unit of Measure

Specifications

Length

 N/A 0.660 in16.8 mm

Large Inside Diameter

 N/A 1.157 in29.4 mm

Small Inside Diameter

 N/A 1.043 in26.5 mm

Flange Outside Diameter

 N/A 1.560 in39.6 mm

Large Outside Diameter

 N/A 1.233 in31.3 mm

Small Outside Diameter

 N/A 1.110 in28.2 mm

Material

 N/A Low-Density Polyethylene (LDPE)

Color

 N/A Yellow

Features and Benefits

Features and Benefits

 N/A
  • Durable and flexible - use as a cap or plug
  • Protects against debris, damage, moisture and corrosion
  • High-visibility color
  • Thicker and wider flange for added durability
  • Many sizes available for immediate shipment.
Plug Caps can also be used as inexpensive, single-use disposable masking products for painting, coating and spraying processes up to 175 ºF (80 ºC).

Note

Note

 N/A To order Thick Wide Flange Tapered Plug Caps, please contact an EFC International representative.
