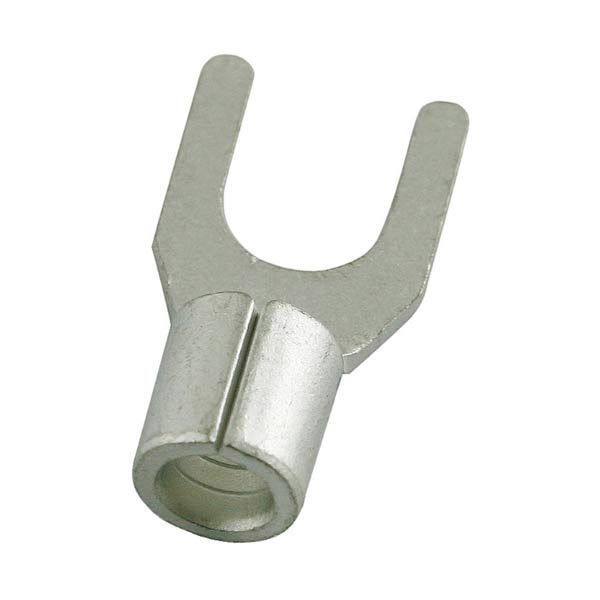

These are the Heavy Duty versions of our Standard Spade Terminals. They accommodate a thicker gauge of wires, 1.20 - 3.0mm and are longer and thicker. Like the Standard variety, they have an open end which enables easy handling and quick insertion on the mounting screw. It is not necessary to remove the screw before disconnecting these terminals. They are most commonly used on studs that are free standing. We offer the Heavy Duty version with or without various insulation. You also have the choice of ordering them by loose piece or on one or more carrier types for your automated assembly.
Unit of Measure
Specifications
Type |
N/A Ring Spade |
Wire Size |
N/A 16/14 AWG |
Stud Size |
N/A 10 mm |
Maximum Length |
N/A 1.103 in28.00 mm |
Barrel Style |
N/A Polyvinyl Chloride (PVC) Insulated |
Minimum Clearance |
N/A 0.301 in7.70 mm |
Maximum Width |
N/A 0.385 in9.80 mm |
Barrel Features
Barrel Features |
N/A Permanent Rigid PVC Sleeve; Protects Against Vibration Damage; Funnel Entrance Prevents Wire from Folding; Improves Crimping Rates; Enhances Wire Termination Reliability. |
Features and Benefits
Features and Benefits |
N/A The open-end design of the Heavy Duty Spade Terminals permits quick visual inspection of the wire location and after crimping. All Wire Ranges are clearly indentified on the metal surfaces for your convenience. They are either serrated or dimpled to improve wire gripping power. Reinforcement has been added where the flat tongue has been formed into a round barrel. |
