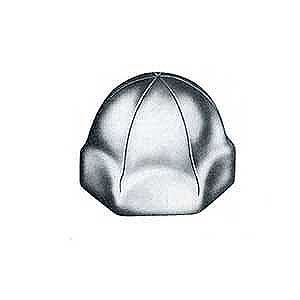

Acorn Type Push-On Locknuts® remain secure and eliminate the need for a lock washer. They can be used alone for load-carrying in light assemblies or on top of ordinary nuts in high-stress assemblies. The parts have a closed top for a clean, finished look.
Unit of Measure

Specifications

Material

 N/A Carbon Spring Steel (SAE 1050)

Material Thickness (Decimal)

 N/A 0.017 in0.430 mm

Overall Height

 N/A 0.372 in9.45 mm

Maximum Across Corners

 N/A 0.482 in12.7 mm

Minimum Across Corners

 N/A 0.429 in12.26 mm

Hex Height

 N/A 0.500 in3.30 mm

Hex Width

 N/A 0.429 in10.9 mm

Stud Rod or Wire Size

 N/A 0.196 in5 mm

Features and Benefits

Features and Benefits

 N/A These Acorn-Type Locknuts will fit onto a 5.00 - 7.50 mm stud and have a 10.80-11.00 mm hex width. They are removable, reusable and self-cleaning and will withstand temperatures up to 400º.
