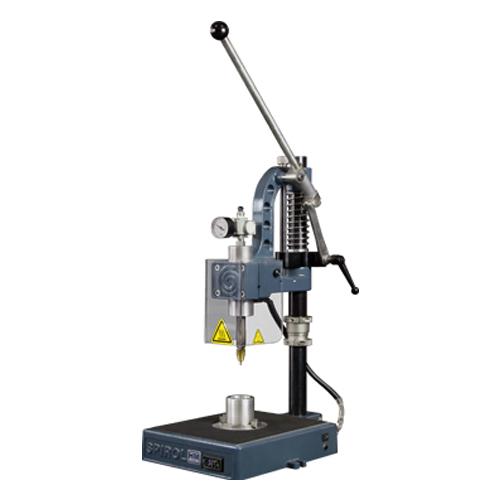

As much as 75% of an Insert’s performance is the direct result of how well it was installed. Therefore, in order to maximize performance, all of the factors that impact installation must be carefully controlled. SPIROL’s Model HM Manual Insert Driver has been designed to eliminate the dependency on the operator to control these factors. The result is nearly perfect flow of the plastic for optimal retention and performance.
Designed to install virtually any type of Heat/Ultrasonic Style Insert

Standard Features:

• Internal air-spring installation system for infinitely adjustable and consistent force
• Easily adjustable, digital temperature controller
• Easily interchangeable heat tips to accommodate various Insert sizes and applications

The Model HM is:

• Easy: - Simple to operate and easily adjustable
• Accurate: - Base plate is pre-drilled for simple and precise fixture location
• Reliable: - Post mount style frame is sturdy, lightweight, and portable
• Precise: - Micrometer style insertion depth stop for accurate, consistent installations
• Versatile: - Installs Inserts ranging in sizes from M2 to M6 metric threads and No. 2 to 1/4” unified threads, and the simple up-down adjustment of the machine makes it easy to accommodate various sized components

Optional alignment fixtures available.
