Quickie Bolt Assemblies
Bolt Assemblies

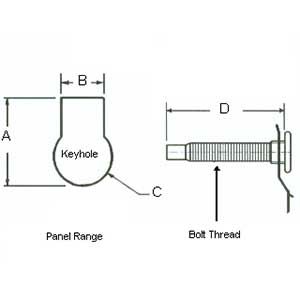

Quickie Bolt Assemblies are an alternative scheme to weld studs that do not require tooling or assembly equipment.
Item # |
Item Name |
Bolt Length |
Key Hole Length |
|---|---|---|---|
| 01C63005M47 | N/A M4 x 0.70 Thread Quickie Bolt Assembly | Bolt Length N/A 18.50 mm | Key Hole Length N/A 15.00 mm |
| 01C63029M61 | N/A M6 x 1.0 Thread Quickie Bolt Assembly | Bolt Length N/A 31.50 mm | Key Hole Length N/A 18.29 mm |
| 01C63035M61 | N/A M6 x 1.0 Thread Quickie Bolt Assembly | Bolt Length N/A 26.20 mm | Key Hole Length N/A 18.29 mm |
| 01C63034M61 | N/A M6 x 1.0 Thread Quickie Bolt Assembly | Bolt Length N/A 19.50 mm | Key Hole Length N/A 18.29 mm |
| 01C63033M61 | N/A M6 x 1.0 Thread Quickie Bolt Assembly | Bolt Length N/A 26.20 mm | Key Hole Length N/A 18.29 mm |
| 01C63031M61 | N/A M6 x 1.0 Thread Quickie Bolt Assembly | Bolt Length N/A 34.50 mm | Key Hole Length N/A 18.29 mm |
| 01500824-450 | N/A M6 x 1.0 Thread Quickie Bolt Assembly | Bolt Length N/A 24.50 mm | Key Hole Length N/A 18.30 mm |
| 01C62996M61 | N/A M6 x 1.0 Thread Quickie Bolt Assembly | Bolt Length N/A 19.50 mm | Key Hole Length N/A 18.30 mm |
| 01C62999M61 | N/A M6 x 1.0 Thread Quickie Bolt Assembly | Bolt Length N/A 17.60 mm | Key Hole Length N/A 18.30 mm |
| 01C63000M61 | N/A M6 x 1.0 Thread Quickie Bolt Assembly | Bolt Length N/A 19.50 mm | Key Hole Length N/A 18.30 mm |
| 01C63030M61 | N/A M6 x 1.0 Thread Quickie Bolt Assembly | Bolt Length N/A 19.50 mm | Key Hole Length N/A 25.50 mm |
| 01C63032M61 | N/A M6 x 1.0 Thread Quickie Bolt Assembly | Bolt Length N/A 20 mm | Key Hole Length N/A 29.50 mm |
| 01C33984M1015 | N/A M10 x 1.50 Thread Quickie Bolt Assembly | Bolt Length N/A 32.30 mm | Key Hole Length N/A 34.00 mm |
| 01C34141M1015 | N/A M10 x 1.50 Thread Quickie Bolt Assembly | Bolt Length N/A 40.30 mm | Key Hole Length N/A 34.00 mm |
