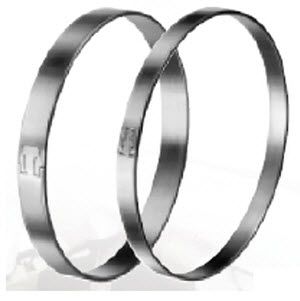

Oetiker® 150 Series Low Profile Multi-Crimp Interlock Rings
Crimp Style Clamps
Oetiker® Low Profile Multi-Crimp Rings are completely free of external protrusions and are ideal for large rotating components located within a confined area. Parts featured on this page are manufactured from precision strip band steel with a mechanical interlock and a profile limited only by their material thickness. Multi-Crimp Clamps provide constant, uniform circumferential compression to airbag systems, fixing boots on steering gears, shock absorbers, coolant systems and ventilation systems.
Item # |
Item Name |
Clamp Diameter |
Clamp Inside Diameter |
Material Thickness (Decimal) |
|---|---|---|---|---|
| 14001624-304 | N/A 150 Series 1.771 Inch (in) Clamp Inside Diameter Low Profile Multi-Crimp Interlock Ring | Clamp Diameter N/A 1.535 to 1.751 in39.00 to 44.50 mm | Clamp Inside Diameter N/A 1.771 in45 mm | Material Thickness (Decimal) N/A 0.047 in1.2 mm |
| 14001625-304 | N/A 150 Series 1.791 Inch (in) Clamp Inside Diameter Low Profile Multi-Crimp Interlock Ring | Clamp Diameter N/A 1.555 to 1.771 in39.50 to 45.00 mm | Clamp Inside Diameter N/A 1.791 in45.5 mm | Material Thickness (Decimal) N/A 0.047 in1.2 mm |
| 14001626-304 | N/A 150 Series 1.811 Inch (in) Clamp Inside Diameter Low Profile Multi-Crimp Interlock Ring | Clamp Diameter N/A 1.574 to 1.791 in40.00 to 45.50 mm | Clamp Inside Diameter N/A 1.811 in46 mm | Material Thickness (Decimal) N/A 0.047 in1.2 mm |
| 14001627-304 | N/A 150 Series 1.83 Inch (in) Clamp Inside Diameter Low Profile Multi-Crimp Interlock Ring | Clamp Diameter N/A 1.594 to 1.811 in40.50 to 46.00 mm | Clamp Inside Diameter N/A 1.83 in46.5 mm | Material Thickness (Decimal) N/A 0.047 in1.2 mm |
| 14001628-304 | N/A 150 Series 1.85 Inch (in) Clamp Inside Diameter Low Profile Multi-Crimp Interlock Ring | Clamp Diameter N/A 1.614 to 1.830 in41.00 to 46.50 mm | Clamp Inside Diameter N/A 1.85 in47 mm | Material Thickness (Decimal) N/A 0.047 in1.2 mm |
| 14001629-304 | N/A 150 Series 1.87 Inch (in) Clamp Inside Diameter Low Profile Multi-Crimp Interlock Ring | Clamp Diameter N/A 1.633 to 1.850 in41.50 to 47.00 mm | Clamp Inside Diameter N/A 1.87 in47.5 mm | Material Thickness (Decimal) N/A 0.047 in1.2 mm |
| 14001630-304 | N/A 150 Series 1.889 Inch (in) Clamp Inside Diameter Low Profile Multi-Crimp Interlock Ring | Clamp Diameter N/A 1.653 to 1.870 in42.00 to 47.50 mm | Clamp Inside Diameter N/A 1.889 in48 mm | Material Thickness (Decimal) N/A 0.047 in1.2 mm |
| 14001631-304 | N/A 150 Series 1.909 Inch (in) Clamp Inside Diameter Low Profile Multi-Crimp Interlock Ring | Clamp Diameter N/A 1.673 to 1.889 in42.50 to 48.00 mm | Clamp Inside Diameter N/A 1.909 in48.5 mm | Material Thickness (Decimal) N/A 0.047 in1.2 mm |
| 14001632-304 | N/A 150 Series 1.929 Inch (in) Clamp Inside Diameter Low Profile Multi-Crimp Interlock Ring | Clamp Diameter N/A 1.692 to 1.909 in43.00 to 48.50 mm | Clamp Inside Diameter N/A 1.929 in49 mm | Material Thickness (Decimal) N/A 0.047 in1.2 mm |
| 14001633-304 | N/A 150 Series 1.948 Inch (in) Clamp Inside Diameter Low Profile Multi-Crimp Interlock Ring | Clamp Diameter N/A 1.712 to 1.929 in43.50 to 49.00 mm | Clamp Inside Diameter N/A 1.948 in49.5 mm | Material Thickness (Decimal) N/A 0.047 in1.2 mm |
| 14001634-304 | N/A 150 Series 1.968 Inch (in) Clamp Inside Diameter Low Profile Multi-Crimp Interlock Ring | Clamp Diameter N/A 1.732 to 1.948 in44.00 to 49.50 mm | Clamp Inside Diameter N/A 1.968 in50 mm | Material Thickness (Decimal) N/A 0.047 in1.2 mm |
| 14001635-304 | N/A 150 Series 1.988 Inch (in) Clamp Inside Diameter Low Profile Multi-Crimp Interlock Ring | Clamp Diameter N/A 1.751 to 1.968 in44.50 to 50.00 mm | Clamp Inside Diameter N/A 1.988 in50.5 mm | Material Thickness (Decimal) N/A 0.047 in1.2 mm |
| 14001636-304 | N/A 150 Series 2.007 Inch (in) Clamp Inside Diameter Low Profile Multi-Crimp Interlock Ring | Clamp Diameter N/A 1.771 to 1.988 in45.00 to 50.50 mm | Clamp Inside Diameter N/A 2.007 in51 mm | Material Thickness (Decimal) N/A 0.047 in1.2 mm |
| 14001637-304 | N/A 150 Series 2.027 Inch (in) Clamp Inside Diameter Low Profile Multi-Crimp Interlock Ring | Clamp Diameter N/A 1.791 to 2.007 in45.50 to 51.00 mm | Clamp Inside Diameter N/A 2.027 in51.5 mm | Material Thickness (Decimal) N/A 0.047 in1.2 mm |
| 14001638-304 | N/A 150 Series 2.047 Inch (in) Clamp Inside Diameter Low Profile Multi-Crimp Interlock Ring | Clamp Diameter N/A 1.811 to 2.027 in46.00 to 51.50 mm | Clamp Inside Diameter N/A 2.047 in52 mm | Material Thickness (Decimal) N/A 0.047 in1.2 mm |
| 14001639-304 | N/A 150 Series 2.066 Inch (in) Clamp Inside Diameter Low Profile Multi-Crimp Interlock Ring | Clamp Diameter N/A 1.830 to 2.047 in46.50 to 52.00 mm | Clamp Inside Diameter N/A 2.066 in52.5 mm | Material Thickness (Decimal) N/A 0.047 in1.2 mm |
| 14001640-304 | N/A 150 Series 2.086 Inch (in) Clamp Inside Diameter Low Profile Multi-Crimp Interlock Ring | Clamp Diameter N/A 1.850 to 2.066 in47.00 to 52.50 mm | Clamp Inside Diameter N/A 2.086 in53 mm | Material Thickness (Decimal) N/A 0.047 in1.2 mm |
| 14001641-304 | N/A 150 Series 2.106 Inch (in) Clamp Inside Diameter Low Profile Multi-Crimp Interlock Ring | Clamp Diameter N/A 1.870 to 2.086 in47.50 to 53.00 mm | Clamp Inside Diameter N/A 2.106 in53.5 mm | Material Thickness (Decimal) N/A 0.047 in1.2 mm |
| 14001642-304 | N/A 150 Series 2.125 Inch (in) Clamp Inside Diameter Low Profile Multi-Crimp Interlock Ring | Clamp Diameter N/A 1.889 to 2.106 in48.00 to 53.50 mm | Clamp Inside Diameter N/A 2.125 in54 mm | Material Thickness (Decimal) N/A 0.047 in1.2 mm |
| 14001643-304 | N/A 150 Series 2.145 Inch (in) Clamp Inside Diameter Low Profile Multi-Crimp Interlock Ring | Clamp Diameter N/A 1.909 to 2.125 in48.50 to 54.00 mm | Clamp Inside Diameter N/A 2.145 in54.5 mm | Material Thickness (Decimal) N/A 0.047 in1.2 mm |
| 14001644-304 | N/A 150 Series 2.165 Inch (in) Clamp Inside Diameter Low Profile Multi-Crimp Interlock Ring | Clamp Diameter N/A 1.929 to 2.145 in49.00 to 54.50 mm | Clamp Inside Diameter N/A 2.165 in55 mm | Material Thickness (Decimal) N/A 0.047 in1.2 mm |
| 14001645-304 | N/A 150 Series 2.185 Inch (in) Clamp Inside Diameter Low Profile Multi-Crimp Interlock Ring | Clamp Diameter N/A 1.948 to 2.165 in49.50 to 55.00 mm | Clamp Inside Diameter N/A 2.185 in55.5 mm | Material Thickness (Decimal) N/A 0.047 in1.2 mm |
| 14001646-304 | N/A 150 Series 2.204 Inch (in) Clamp Inside Diameter Low Profile Multi-Crimp Interlock Ring | Clamp Diameter N/A 1.968 to 2.185 in50.00 to 55.50 mm | Clamp Inside Diameter N/A 2.204 in56 mm | Material Thickness (Decimal) N/A 0.047 in1.2 mm |
| 14001647-304 | N/A 150 Series 2.224 Inch (in) Clamp Inside Diameter Low Profile Multi-Crimp Interlock Ring | Clamp Diameter N/A 1.988 to 2.204 in50.50 to 56.00 mm | Clamp Inside Diameter N/A 2.224 in56.5 mm | Material Thickness (Decimal) N/A 0.047 in1.2 mm |
| 14001648-304 | N/A 150 Series 2.244 Inch (in) Clamp Inside Diameter Low Profile Multi-Crimp Interlock Ring | Clamp Diameter N/A 2.007 to 2.224 in51.00 to 56.50 mm | Clamp Inside Diameter N/A 2.244 in57 mm | Material Thickness (Decimal) N/A 0.047 in1.2 mm |
