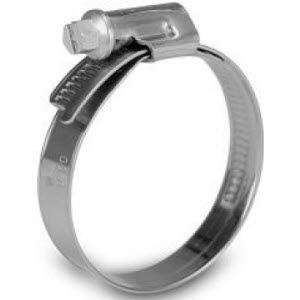

Torro® 12 Millimeter (mm) Wide Worm Gear Clamps
Embossed or Lined Worm Gear Clamps
12 mm Wide Torro® Worm Gear Clamps are an ideal choice for uniform hose sealing when connecting automotive fuel lines, as well as fuel lines for the white goods industry, sanitary facilities, machine construction, and the like. Their asymmetrical design provides even distribution of force and safe assembly. Hoses are protected by the curved band edges, and by the interior of the band, which is either smooth or stamped. They have a wide clamping range, and are available in several different materials and accessory options to suit your application needs.
Item # |
Item Name |
Band Width (Decimal) |
Range |
Screw Material |
|---|---|---|---|---|
| 15N0000030-304Q | N/A Torro® 1.000 to 1.625 Inch (in) Range and 12 Millimeter (mm) Wide Worm Gear Clamp | Band Width (Decimal) N/A 0.472 in12.00 mm | Range N/A 1.000 to 1.625 in25 to 40 mm | Screw Material N/A 304 Stainless Steel (SS) |
| 15N0000030-430Q | N/A Torro® 1.000 to 1.625 Inch (in) Range and 12 Millimeter (mm) Wide Zinc Plated Worm Gear Clamp | Band Width (Decimal) N/A 0.472 in12.00 mm | Range N/A 1.000 to 1.625 in25 to 40 mm | Screw Material N/A Carbon Steel |
| 15N0000030-431Q | N/A Torro® 1.000 to 1.625 Inch (in) Range and 12 Millimeter (mm) Wide Worm Gear Clamp | Band Width (Decimal) N/A 0.472 in12.00 mm | Range N/A 1.000 to 1.625 in25 to 40 mm | Screw Material N/A 430 Stainless Steel (SS) |
| 15N0000031-304Q | N/A Torro® 1.250 to 1.750 Inch (in) Range and 12 Millimeter (mm) Wide Worm Gear Clamp | Band Width (Decimal) N/A 0.472 in12.00 mm | Range N/A 1.250 to 1.750 in30 to 45 mm | Screw Material N/A 304 Stainless Steel (SS) |
| 15N0000031-430Q | N/A Torro® 1.250 to 1.750 Inch (in) Range and 12 Millimeter (mm) Wide Zinc Plated Worm Gear Clamp | Band Width (Decimal) N/A 0.472 in12.00 mm | Range N/A 1.250 to 1.750 in30 to 45 mm | Screw Material N/A Carbon Steel |
| 15N0000031-431Q | N/A Torro® 1.250 to 1.750 Inch (in) Range and 12 Millimeter (mm) Wide Worm Gear Clamp | Band Width (Decimal) N/A 0.472 in12.00 mm | Range N/A 1.250 to 1.750 in30 to 45 mm | Screw Material N/A 430 Stainless Steel (SS) |
| 15N0000032-304Q | N/A Torro® 1.187 to 2.000 Inch (in) Range and 12 Millimeter (mm) Wide Worm Gear Clamp | Band Width (Decimal) N/A 0.472 in12.00 mm | Range N/A 1.187 to 2.000 in35 to 50 mm | Screw Material N/A 304 Stainless Steel (SS) |
| 15N0000032-430Q | N/A Torro® 1.187 to 2.000 Inch (in) Range and 12 Millimeter (mm) Wide Zinc Plated Worm Gear Clamp | Band Width (Decimal) N/A 0.472 in12.00 mm | Range N/A 1.187 to 2.000 in35 to 50 mm | Screw Material N/A Carbon Steel |
| 15N0000032-431Q | N/A Torro® 1.187 to 2.000 Inch (in) Range and 12 Millimeter (mm) Wide Worm Gear Clamp | Band Width (Decimal) N/A 0.472 in12.00 mm | Range N/A 1.187 to 2.000 in35 to 50 mm | Screw Material N/A 430 Stainless Steel (SS) |
| 15N0000033-304Q | N/A Torro® 1.625 to 2.500 Inch (in) Range and 12 Millimeter (mm) Wide Worm Gear Clamp | Band Width (Decimal) N/A 0.472 in12.00 mm | Range N/A 1.625 to 2.500 in40 to 60 mm | Screw Material N/A 304 Stainless Steel (SS) |
| 15N0000033-430Q | N/A Torro® 1.625 to 2.500 Inch (in) Range and 12 Millimeter (mm) Wide Zinc Plated Worm Gear Clamp | Band Width (Decimal) N/A 0.472 in12.00 mm | Range N/A 1.625 to 2.500 in40 to 60 mm | Screw Material N/A Carbon Steel |
| 15N0000033-431Q | N/A Torro® 1.625 to 2.500 Inch (in) Range and 12 Millimeter (mm) Wide Worm Gear Clamp | Band Width (Decimal) N/A 0.472 in12.00 mm | Range N/A 1.625 to 2.500 in40 to 60 mm | Screw Material N/A 430 Stainless Steel (SS) |
| 15N0000034-304Q | N/A Torro® 2.000 to 2.750 Inch (in) Range and 12 Millimeter (mm) Wide Worm Gear Clamp | Band Width (Decimal) N/A 0.472 in12.00 mm | Range N/A 2.000 to 2.750 in50 to 70 mm | Screw Material N/A 304 Stainless Steel (SS) |
| 15N0000034-430Q | N/A Torro® 2.000 to 2.750 Inch (in) Range and 12 Millimeter (mm) Wide Zinc Plated Worm Gear Clamp | Band Width (Decimal) N/A 0.472 in12.00 mm | Range N/A 2.000 to 2.750 in50 to 70 mm | Screw Material N/A Carbon Steel |
| 15N0000034-431Q | N/A Torro® 2.000 to 2.750 Inch (in) Range and 12 Millimeter (mm) Wide Worm Gear Clamp | Band Width (Decimal) N/A 0.472 in12.00 mm | Range N/A 2.000 to 2.750 in50 to 70 mm | Screw Material N/A 430 Stainless Steel (SS) |
| 15N0000035-304Q | N/A Torro® 2.375 to 3.125 Inch (in) Range and 12 Millimeter (mm) Wide Worm Gear Clamp | Band Width (Decimal) N/A 0.472 in12.00 mm | Range N/A 2.375 to 3.125 in60 to 80 mm | Screw Material N/A 304 Stainless Steel (SS) |
| 15N0000035-430Q | N/A Torro® 2.375 to 3.125 Inch (in) Range and 12 Millimeter (mm) Wide Zinc Plated Worm Gear Clamp | Band Width (Decimal) N/A 0.472 in12.00 mm | Range N/A 2.375 to 3.125 in60 to 80 mm | Screw Material N/A Carbon Steel |
| 15N0000035-431Q | N/A Torro® 2.375 to 3.125 Inch (in) Range and 12 Millimeter (mm) Wide Worm Gear Clamp | Band Width (Decimal) N/A 0.472 in12.00 mm | Range N/A 2.375 to 3.125 in60 to 80 mm | Screw Material N/A 430 Stainless Steel (SS) |
| 15N0000036-304Q | N/A Torro® 2.750 to 3.500 Inch (in) Range and 12 Millimeter (mm) Wide Worm Gear Clamp | Band Width (Decimal) N/A 0.472 in12.00 mm | Range N/A 2.750 to 3.500 in70 to 90 mm | Screw Material N/A 304 Stainless Steel (SS) |
| 15N0000036-430Q | N/A Torro® 2.750 to 3.500 Inch (in) Range and 12 Millimeter (mm) Wide Zinc Plated Worm Gear Clamp | Band Width (Decimal) N/A 0.472 in12.00 mm | Range N/A 2.750 to 3.500 in70 to 90 mm | Screw Material N/A Carbon Steel |
| 15N0000036-431Q | N/A Torro® 2.750 to 3.500 Inch (in) Range and 12 Millimeter (mm) Wide Worm Gear Clamp | Band Width (Decimal) N/A 0.472 in12.00 mm | Range N/A 2.750 to 3.500 in70 to 90 mm | Screw Material N/A 430 Stainless Steel (SS) |
| 15N0000037-304Q | N/A Torro® 3.125 to 4.000 Inch (in) Range and 12 Millimeter (mm) Wide Worm Gear Clamp | Band Width (Decimal) N/A 0.472 in12.00 mm | Range N/A 3.125 to 4.000 in80 to 100 mm | Screw Material N/A 304 Stainless Steel (SS) |
| 15N0000037-430Q | N/A Torro® 3.125 to 4.000 Inch (in) Range and 12 Millimeter (mm) Wide Zinc Plated Worm Gear Clamp | Band Width (Decimal) N/A 0.472 in12.00 mm | Range N/A 3.125 to 4.000 in80 to 100 mm | Screw Material N/A Carbon Steel |
| 15N0000037-431Q | N/A Torro® 3.125 to 4.000 Inch (in) Range and 12 Millimeter (mm) Wide Worm Gear Clamp | Band Width (Decimal) N/A 0.472 in12.00 mm | Range N/A 3.125 to 4.000 in80 to 100 mm | Screw Material N/A 430 Stainless Steel (SS) |
| 15N0000027-304Q | N/A Torro® 0.625 to 1.000 Inch (in) Range and 12 Millimeter (mm) Wide Worm Gear Clamp | Band Width (Decimal) N/A 0.472 in12.00 mm | Range N/A 0.625 to 1.000 in16 to 25 mm | Screw Material N/A 304 Stainless Steel (SS) |
