Normaplast® SV Straight Push-On Hose Connectors for PA6 OR PA12 Pipes
Fluid and Air Management

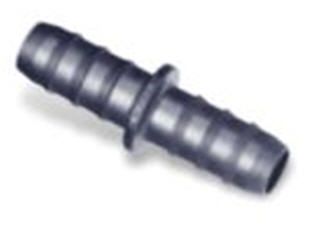

Normaplast® SV Straight Plastic Pipe Connectors safely link pipes made from PA6 or PA12, even without additional hose clamps. They are made from Black Polyamide 6 or Polyamide 12 containing 30% glass fiber-reinforcement. O-Rings are available on request.
Item # |
Item Name |
Hose Inside Diameter D1 |
Overall Length L1 |
Material |
|---|---|---|---|---|
| 15N000685-XX | N/A Normaplast® 6.40 Millimeter (mm) Hose Inside Diameter D1 SV Straight Push-On Hose Connector | Hose Inside Diameter D1 N/A 6.4 mm | Overall Length L1 N/A 45.00 mm | Material N/A Polyamide 6 or 12; 30% Glass Fiber-Reinforcement |
| 15N000686-XX | N/A Normaplast® 9.20 Millimeter (mm) Hose Inside Diameter D1 SV Straight Push-On Hose Connector | Hose Inside Diameter D1 N/A 9.2 mm | Overall Length L1 N/A 46.00 mm | Material N/A Polyamide 6 or 12; 30% Glass Fiber-Reinforcement |
| 15N000687-XX | N/A Normaplast® 11.00 Millimeter (mm) Hose Inside Diameter D1 SV Straight Push-On Hose Connector | Hose Inside Diameter D1 N/A 11 mm | Overall Length L1 N/A 46.00 mm | Material N/A Polyamide 6 or 12; 30% Glass Fiber-Reinforcement |
| 15N000688-XX | N/A Normaplast® 16.90 Millimeter (mm) Hose Inside Diameter D1 SV Straight Push-On Hose Connector | Hose Inside Diameter D1 N/A 16.90 mm | Overall Length L1 N/A 32.00 mm | Material N/A Polyamide 6 or 12; 30% Glass Fiber-Reinforcement |
| 15N000689-XX | N/A Normaplast® 21.00 Millimeter (mm) Hose Inside Diameter D1 SV Straight Push-On Hose Connector | Hose Inside Diameter D1 N/A 21.00 mm | Overall Length L1 N/A 39.00 mm | Material N/A Polyamide 6 or 12; 30% Glass Fiber-Reinforcement |
| 15N000690-XX | N/A Normaplast® 29.00 Millimeter (mm) Hose Inside Diameter D1 SV Straight Push-On Hose Connector | Hose Inside Diameter D1 N/A 29.00 mm | Overall Length L1 N/A 42.00 mm | Material N/A Polyamide 6 or 12; 30% Glass Fiber-Reinforcement |
