Glossy Nylon Dome Hole Plugs
Hole Plugs

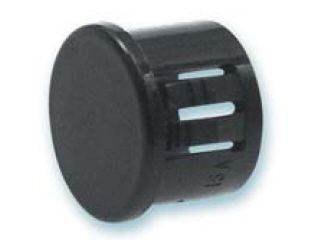

Glossy Nylon Dome Plugs close unneeded chassis holes, and their smooth, glossy head provides easy glide and shiny finish. They are available in Single Chassis and Multiple Chassis designs.
1 2
Item # |
Item Name |
Mounting Hole Size |
Maximum Panel Thickness |
Head Outside Diameter |
|---|---|---|---|---|
| 20300052-A010 | N/A 0.312 Inch (in) Overall Height Glossy White Nylon Dome Hole Plug | Mounting Hole Size N/A 0.250 in6.40 mm | Maximum Panel Thickness N/A 0.062 in1.60 mm | Head Outside Diameter N/A 0.312 in7.90 mm |
| 20300052-A03I | N/A 0.312 Inch (in) Overall Height Glossy Black Nylon Dome Hole Plug | Mounting Hole Size N/A 0.250 in6.40 mm | Maximum Panel Thickness N/A 0.062 in1.60 mm | Head Outside Diameter N/A 0.312 in7.90 mm |
| 20300193-A030 | N/A 0.406 Inch (in) Overall Height Glossy Black Nylon Dome Hole Plug | Mounting Hole Size N/A 0.375 in9.50 mm | Maximum Panel Thickness N/A 0.125 in3.2 mm | Head Outside Diameter N/A 0.468 in11.90 mm |
| 20300194-A010 | N/A 0.453 Inch (in) Overall Height Glossy White Nylon Dome Hole Plug | Mounting Hole Size N/A 1.125 in28.60 mm | Maximum Panel Thickness N/A 0.125 in3.2 mm | Head Outside Diameter N/A 1.218 in30.90 mm |
| 20300194-A030 | N/A 0.453 Inch (in) Overall Height Glossy Black Nylon Dome Hole Plug | Mounting Hole Size N/A 1.125 in28.60 mm | Maximum Panel Thickness N/A 0.125 in3.2 mm | Head Outside Diameter N/A 1.218 in30.90 mm |
| 20300195-A010 | N/A 0.453 Inch (in) Overall Height Glossy White Nylon Dome Hole Plug | Mounting Hole Size N/A 1.187 in30.10 mm | Maximum Panel Thickness N/A 0.125 in3.2 mm | Head Outside Diameter N/A 1.312 in33.30 mm |
| 20300195-A030 | N/A 0.453 Inch (in) Overall Height Glossy Black Nylon Dome Hole Plug | Mounting Hole Size N/A 1.187 in30.10 mm | Maximum Panel Thickness N/A 0.125 in3.2 mm | Head Outside Diameter N/A 1.312 in33.30 mm |
| 20300720-A010 | N/A 0.453 Inch (in) Overall Height Glossy White Nylon Dome Hole Plug | Mounting Hole Size N/A 1.250 in34.90 mm | Maximum Panel Thickness N/A 0.125 in3.2 mm | Head Outside Diameter N/A 1.468 in37.20 mm |
| 20300720-A030 | N/A 0.453 Inch (in) Overall Height Glossy Black Nylon Dome Hole Plug | Mounting Hole Size N/A 1.250 in34.90 mm | Maximum Panel Thickness N/A 0.125 in3.2 mm | Head Outside Diameter N/A 1.468 in37.20 mm |
| 20300721-A010 | N/A 0.453 Inch (in) Overall Height Glossy White Nylon Dome Hole Plug | Mounting Hole Size N/A 1.500 in38.10 mm | Maximum Panel Thickness N/A 0.125 in3.2 mm | Head Outside Diameter N/A 1.609 in40.80 mm |
| 20300721-A030 | N/A 0.453 Inch (in) Overall Height Glossy Black Nylon Dome Hole Plug | Mounting Hole Size N/A 1.500 in38.10 mm | Maximum Panel Thickness N/A 0.125 in3.2 mm | Head Outside Diameter N/A 1.609 in40.80 mm |
| 20300722-A010 | N/A 0.453 Inch (in) Overall Height Glossy White Nylon Dome Hole Plug | Mounting Hole Size N/A 1.750 in44.40 mm | Maximum Panel Thickness N/A 0.125 in3.2 mm | Head Outside Diameter N/A 1.875 in47.60 mm |
| 20300722-A030 | N/A 0.453 Inch (in) Overall Height Glossy Black Nylon Dome Hole Plug | Mounting Hole Size N/A 1.750 in44.40 mm | Maximum Panel Thickness N/A 0.125 in3.2 mm | Head Outside Diameter N/A 1.875 in47.60 mm |
| 20300723-A010 | N/A 0.453 Inch (in) Overall Height Glossy White Nylon Dome Hole Plug | Mounting Hole Size N/A 2.000 in50.80 mm | Maximum Panel Thickness N/A 0.125 in3.2 mm | Head Outside Diameter N/A 2.157 in54.80 mm |
| 20300723-A030 | N/A 0.453 Inch (in) Overall Height Glossy Black Nylon Dome Hole Plug | Mounting Hole Size N/A 2.000 in50.80 mm | Maximum Panel Thickness N/A 0.125 in3.2 mm | Head Outside Diameter N/A 2.157 in54.80 mm |
| 20617003-A010 | N/A 0.312 Inch (in) Overall Height Glossy White Nylon Dome Hole Plug | Mounting Hole Size N/A 0.312 in7.90 mm | Maximum Panel Thickness N/A 0.062 in1.60 mm | Head Outside Diameter N/A 0.375 in9.50 mm |
| 20617003-A030I | N/A 0.312 Inch (in) Overall Height Glossy Black Nylon Dome Hole Plug | Mounting Hole Size N/A 0.312 in7.90 mm | Maximum Panel Thickness N/A 0.062 in1.60 mm | Head Outside Diameter N/A 0.375 in9.50 mm |
| 20617006-A010 | N/A 0.406 Inch (in) Overall Height Glossy White Nylon Dome Hole Plug | Mounting Hole Size N/A 0.500 in12.70 mm | Maximum Panel Thickness N/A 0.125 in3.2 mm | Head Outside Diameter N/A 0.563 in14.30 mm |
| 20300193-A010 | N/A 0.406 Inch (in) Overall Height Glossy White Nylon Dome Hole Plug | Mounting Hole Size N/A 0.375 in9.50 mm | Maximum Panel Thickness N/A 0.125 in3.2 mm | Head Outside Diameter N/A 0.468 in11.90 mm |
| 20617006-A03I | N/A 0.406 Inch (in) Overall Height Glossy White Nylon Dome Hole Plug | Mounting Hole Size N/A 0.500 in12.70 mm | Maximum Panel Thickness N/A 0.125 in3.2 mm | Head Outside Diameter N/A 0.563 in14.30 mm |
| 20617007-A010 | N/A 0.406 Inch (in) Overall Height Glossy White Nylon Dome Hole Plug | Mounting Hole Size N/A 0.437 in11.10 mm | Maximum Panel Thickness N/A 0.125 in3.2 mm | Head Outside Diameter N/A 0.531 in14.30 mm |
| 20617007-A030I | N/A 0.406 Inch (in) Overall Height Glossy White Nylon Dome Hole Plug | Mounting Hole Size N/A 0.437 in11.10 mm | Maximum Panel Thickness N/A 0.125 in3.2 mm | Head Outside Diameter N/A 0.531 in13.50 mm |
| 20617012-A010I | N/A 0.406 Inch (in) Overall Height Glossy White Nylon Dome Hole Plug | Mounting Hole Size N/A 0.532 in14.30 mm | Maximum Panel Thickness N/A 0.125 in3.2 mm | Head Outside Diameter N/A 0.656 in16.70 mm |
| 20617012-A030 | N/A 0.406 Inch (in) Overall Height Glossy White Nylon Dome Hole Plug | Mounting Hole Size N/A 0.532 in14.30 mm | Maximum Panel Thickness N/A 0.125 in3.2 mm | Head Outside Diameter N/A 0.656 in16.70 mm |
| 20617013-A010 | N/A 0.406 Inch (in) Overall Height Glossy White Nylon Dome Hole Plug | Mounting Hole Size N/A 0.625 in15.90 mm | Maximum Panel Thickness N/A 0.125 in3.2 mm | Head Outside Diameter N/A 0.734 in18.60 mm |
