Camloc® 1429L Series Tension Latches
Metal Access Fasteners

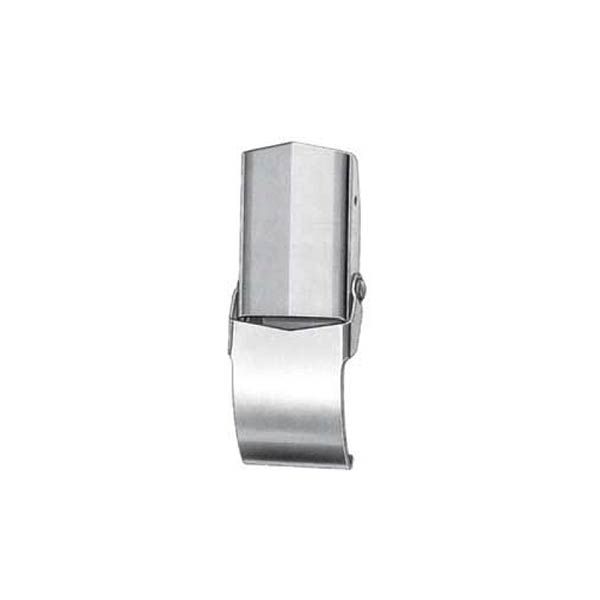

1429L Series Draw Latches from Camloc® provide an adjustable, high-performance method ideal for securing machine and equipment parts that must be opened or removed frequently. Draw latches include a self-compensating spring steel drawhook. The low profile design installs with rivets or screws, and the handle neatly conceals all interior parts and strike.
Maximum tensile strength for the 1429L Series is 1.500 N, working load is 1.000 N. These numbers will vary depending on the strike used.
Maximum tensile strength for the 1429L Series is 1.500 N, working load is 1.000 N. These numbers will vary depending on the strike used.
Item # |
Item Name |
Hole Diameter |
Maximum Tensile Strength |
Working Load |
|---|---|---|---|---|
| 371429L0211AG | N/A Camloc® 1429L Series Tension Latch with Spring Steel Drawhook - Zinc Plated Steel | Hole Diameter N/A 3.1 mm | Maximum Tensile Strength N/A 1.500 N | Working Load N/A 1.000 N |
| 371429L0211BP | N/A Camloc® 1429L Series Tension Latch with Spring Steel Drawhook - Stainless Steel | Hole Diameter N/A 3.1 mm | Maximum Tensile Strength N/A 1.500 N | Working Load N/A 1.000 N |
| 371429L0221AG | N/A Camloc® 1429L Series Tension Latch with Wire Drawhook - Zinc Plated Steel | Hole Diameter N/A 3.1 mm | Maximum Tensile Strength N/A 1.500 N | Working Load N/A 1.000 N |
| 371429L0221BP | N/A Camloc® 1429L Series Tension Latch with Wire Drawhook - Stainless Steel | Hole Diameter N/A 3.1 mm | Maximum Tensile Strength N/A 1.500 N | Working Load N/A 1.000 N |
| 371429L0231AG | N/A Camloc® 1429L Series Tension Latch with Hooked Wire Drawhook - Zinc Plated Steel | Hole Diameter N/A 3.1 mm | Maximum Tensile Strength N/A 1.500 N | Working Load N/A 1.000 N |
| 371429L0231BP | N/A Camloc® 1429L Series Tension Latch with Hooked Wire Drawhook - Stainless Steel | Hole Diameter N/A 3.1 mm | Maximum Tensile Strength N/A 1.500 N | Working Load N/A 1.000 N |
| 371429L021X1AG | N/A Camloc® 1429L Series Tension Latch with Spring Steel Drawhook and Secondary Lock - Zinc Plated Steel | Hole Diameter N/A 3.1 mm | Maximum Tensile Strength N/A 1.500 N | Working Load N/A 1.000 N |
| 371429L021X1BP | N/A Camloc® 1429L Series Tension Latch with Spring Steel Drawhook and Secondary Lock - Stainless Steel | Hole Diameter N/A 3.1 mm | Maximum Tensile Strength N/A 1.500 N | Working Load N/A 1.000 N |
| 371429L022X1AG | N/A Camloc® 1429L Series Tension Latch with Wire Drawhook and Secondary Lock - Zinc Plated Steel | Hole Diameter N/A 3.1 mm | Maximum Tensile Strength N/A 1.500 N | Working Load N/A 1.000 N |
| 371429L022X1BP | N/A Camloc® 1429L Series Tension Latch with Wire Drawhook and Secondary Lock - Stainless Steel | Hole Diameter N/A 3.1 mm | Maximum Tensile Strength N/A 1.500 N | Working Load N/A 1.000 N |
| 37200023-112 | N/A Camloc® 1429L Series Tension Latch with Hooked Wire Drawhook and Secondary Lock - Zinc Plated Steel | Hole Diameter N/A 3.1 mm | Maximum Tensile Strength N/A 1.500 N | Working Load N/A 1.000 N |
| 371429L023X1BP | N/A Camloc® 1429L Series Tension Latch with Hooked Wire Drawhook and Secondary Lock - Stainless Steel | Hole Diameter N/A 3.1 mm | Maximum Tensile Strength N/A 1.500 N | Working Load N/A 1.000 N |
| 371429L81AG | N/A Camloc® 1429L Series Tension Latch Strike for use with Spring Steel Drawhook - Zinc Plated Steel | Hole Diameter N/A 3.1 mm | Maximum Tensile Strength N/A 1.500 N | Working Load N/A 1.000 N |
| 371429L81BP | N/A Camloc® 1429L Series Tension Latch Strike for use with Spring Steel Drawhook - Stainless Steel | Hole Diameter N/A 3.1 mm | Maximum Tensile Strength N/A 1.500 N | Working Load N/A 1.000 N |
| 371429L91AG | N/A Camloc® 1429L Series Tension Latch Strike for use with Wire Drawhook - Zinc Plated Steel | Hole Diameter N/A 3.1 mm | Maximum Tensile Strength N/A 1.500 N | Working Load N/A 1.000 N |
| 371429L91BP | N/A Camloc® 1429L Series Tension Latch Strike for use with Wire Drawhook - Stainless Steel | Hole Diameter N/A 3.1 mm | Maximum Tensile Strength N/A 1.500 N | Working Load N/A 1.000 N |
