Camloc® V917L Series Tension Latches
Metal Access Fasteners

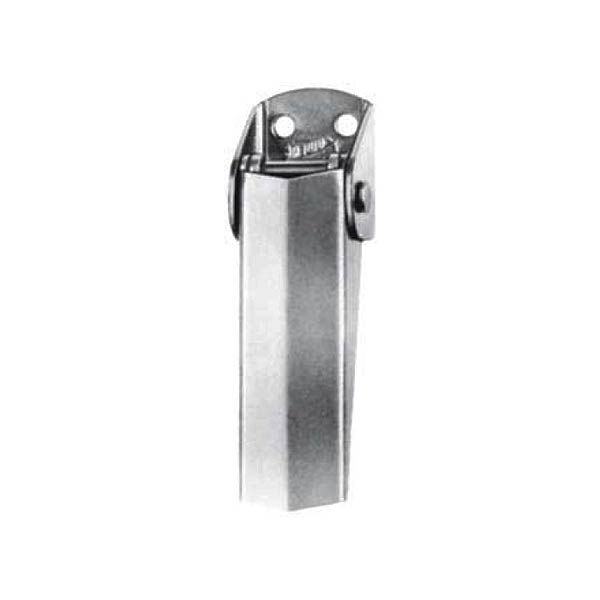

V917L Series Draw Latches from Camloc® provide an adjustable, high-performance method ideal for securing machine and equipment parts that must be opened or removed frequently. Draw latches include an adjustable, self-compensating spring steel drawhook. The handle neatly conceals interior parts and strike.
Maximum tensile strength for the V917L Series is 3.600 N, working load is 2.700 N. These numbers will vary depending on the strike used.
Maximum tensile strength for the V917L Series is 3.600 N, working load is 2.700 N. These numbers will vary depending on the strike used.
Item # |
Item Name |
Hole Diameter |
Maximum Tensile Strength |
Working Load |
|---|---|---|---|---|
| 37V917L0111AG | N/A Camloc® V917L Series Zinc Plated Steel Tension Latch with Open Base | Hole Diameter N/A 5.1 mm | Maximum Tensile Strength N/A 3.600 N | Working Load N/A 2.700 N |
| 37V917L0111BP | N/A Camloc® V917L Series Stainless Steel Tension Latch with Open Base | Hole Diameter N/A 5.1 mm | Maximum Tensile Strength N/A 3.600 N | Working Load N/A 2.700 N |
| 37V17L1211AA | N/A Camloc® V917L Series Zinc Plated Steel Tension Latch with High Base | Hole Diameter N/A 4.2 mm | Maximum Tensile Strength N/A 3.600 N | Working Load N/A 2.700 N |
| 37V917L011X1AG | N/A Camloc® V917L Series Zinc Plated Steel Tension Latch with Secondary Lock, Open Base | Hole Diameter N/A 5.1 mm | Maximum Tensile Strength N/A 3.600 N | Working Load N/A 2.700 N |
| 37V917L011X1BP | N/A Camloc® V917L Series Stainless Steel Tension Latch with Secondary Lock, Open Base | Hole Diameter N/A 5.1 mm | Maximum Tensile Strength N/A 3.600 N | Working Load N/A 2.700 N |
| 37V917L011X2BP | N/A Camloc® V917L Series Stainless Steel Tension Latch with Secondary Lock, Open Base | Hole Diameter N/A | Maximum Tensile Strength N/A 3.600 N | Working Load N/A 2.700 N |
| 37V917L011X1CP | N/A Camloc® V917L Series Stainless Steel V4A Tension Latch with Secondary Lock, Open Base | Hole Diameter N/A 5.1 mm | Maximum Tensile Strength N/A 3.600 N | Working Load N/A 2.700 N |
| 37V917L011X2CP | N/A Camloc® V917L Series Stainless Steel V4A Tension Latch with Secondary Lock, Open Base | Hole Diameter N/A | Maximum Tensile Strength N/A 3.600 N | Working Load N/A 2.700 N |
| 37V17L122X1AA | N/A Camloc® V917L Series Zinc Plated Steel Tension Latch with Secondary Lock, High Base | Hole Diameter N/A 4.2 mm | Maximum Tensile Strength N/A 3.600 N | Working Load N/A 2.700 N |
| 371449L021X1AG | N/A Camloc® V917L Series Zinc Plated Steel Tension Latch with Secondary Lock, Curved Surface | Hole Diameter N/A 5 mm | Maximum Tensile Strength N/A 3.600 N | Working Load N/A 2.700 N |
| 371449L021X1BP | N/A Camloc® V917L Series Stainless Steel Tension Latch with Secondary Lock, Curved Surface | Hole Diameter N/A 5 mm | Maximum Tensile Strength N/A 3.600 N | Working Load N/A 2.700 N |
| 37V917L011Y1AG | N/A Camloc® V917L Series Zinc Plated Steel Tension Latch with Open Base and Hasp | Hole Diameter N/A 5.1 mm | Maximum Tensile Strength N/A 3.600 N | Working Load N/A 2.700 N |
| 37V917L1111AG | N/A Camloc® V917L Series Zinc Plated Steel Open Strike | Hole Diameter N/A 5.1 mm | Maximum Tensile Strength N/A 3.600 N | Working Load N/A 2.700 N |
| 37V917L1113AG | N/A Camloc® V917L Series Zinc Plated Steel Open Strike | Hole Diameter N/A 4.2 mm | Maximum Tensile Strength N/A 3.600 N | Working Load N/A 2.700 N |
| 37V917L1111BP | N/A Camloc® V917L Series Stainless Steel Open Strike | Hole Diameter N/A 5.1 mm | Maximum Tensile Strength N/A 3.600 N | Working Load N/A 2.700 N |
| 37V951L505AGV | N/A Camloc® V917L Series Zinc Plated Steel Closed Strike | Hole Diameter N/A 5.1 mm | Maximum Tensile Strength N/A 3.600 N | Working Load N/A 2.700 N |
