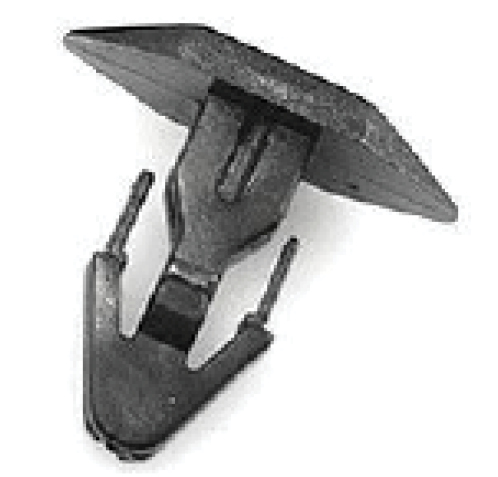

• Weatherstrip Clip
Weatherstrip Clips are designed to retain in the weather strip during shipping and then fasten the weather strip to the vehicle. They typically incorporate a T-Head to retain in the soft weather strip.

FEATURES & BENEFITS
  • Economical fastening to sheet metal
  • Features allow for automated assembly
1 - 12 of 12 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Hole Size

Panel Thickness

Original Equipment Manufacturer (OEM) Reference

N/A 4.9 to 5.1 mm N/A .80 to 1.60 mm N/A
N/A 4.9 to 5.3 mm N/A .65 to 1.60 mm N/A
N/A 5.0 mm N/A 2.0 to 2.25 mm N/A
N/A 5.0 mm N/A .75 to 5.0 mm N/A
N/A 5.0 to 5.4 mm N/A .74 to 2.0 mm N/A Ford W711858-S300
N/A 5.0 mm N/A .8 to 2.7 mm N/A
N/A 5.0 mm N/A 1.1 to 6.6 mm N/A
N/A 5.2 mm N/A .7 to .88 mm N/A
N/A 5.2 mm N/A 1.95 to 2.05 mm N/A
N/A 6.0 mm N/A .8 to 3.0 mm N/A
N/A 5.0 to 5.6 mm N/A 3.5 to 4.0 mm5.0 to 5.6 mm N/A
N/A 6.60 mm N/A 0.6 to 7.8 mm N/A
