12/10 American Wire Gauge (AWG) Multi-Stud Ring Electrical Terminals
Ring Terminals

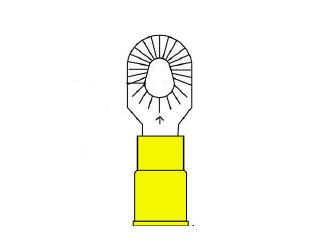

Multi-Stud Terminals are available in wire ranges of 22 through 10 AWG. With their ring-like shape, they still provide you most of the advantages of a Standard Ring Terminal, with the additional feature that allows them to be used with different stud sizes.
Item # |
Item Name |
Maximum Length |
Maximum Width |
Minimum Clearance |
---|---|---|---|---|
E19E09420001 | N/A 0.890 Inch (in) Maximum Length and 12/10 American Wire Gauge (AWG) Multi-Stud Ring Non Insulated Butted Seam Electrical Terminal | Maximum Length N/A 0.890 in | Maximum Width N/A 0.410 in | Minimum Clearance N/A 0.330 in |
E19E09420002 | N/A 1.191 Inch (in) Maximum Length and 12/10 American Wire Gauge (AWG) Multi-Stud Ring Polyvinyl Chloride (PVC) Insulated Electrical Terminal | Maximum Length N/A 1.191 in | Maximum Width N/A 0.410 in | Minimum Clearance N/A 0.330 in |
E19E09420003 | N/A 1.295 Inch (in) Maximum Length and 12/10 American Wire Gauge (AWG) Multi-Stud Ring Nylon Insulated Metal Sleeve Electrical Terminal | Maximum Length N/A 1.295 in | Maximum Width N/A 0.410 in | Minimum Clearance N/A 0.330 in |
