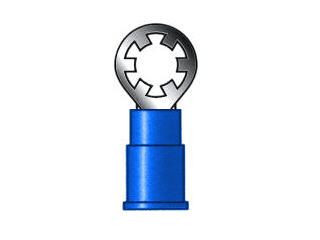

• Star Electrical Wire Terminals
Star Terminals are excellent choices for grounding due to the serrated edges that bite into the metal wire to provide an ultra-secure connection or ground, possibly eliminating the need for lock washers. In addition, with their ring-like shape, they still provide you with the advantages of a Standard Ring Terminal.
1 - 18 of 18 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Stud Size

Maximum Length

Maximum Width

N/A 0.700 Inch (in) Maximum Length Non Insulated Butted Seam Star Brass Electrical Wire Terminal N/A 6 mm N/A 0.700 in N/A 0.385 in
N/A 0.700 Inch (in) Maximum Length Non Insulated Butted Seam Star Steel Electrical Wire Terminal N/A 6 mm N/A 0.700 in N/A 0.385 in
N/A 0.093 Inch (in) Maximum Length Polyvinyl Chloride (PVC) Insulated Star Brass Electrical Wire Terminal N/A 6 mm N/A 0.093 in N/A 0.385 in
N/A 0.093 Inch (in) Maximum Length Polyvinyl Chloride (PVC) Insulated Star Steel Electrical Wire Terminal N/A 6 mm N/A 0.093 in N/A 0.385 in
N/A 0.093 Inch (in) Maximum Length Nylon Insulated Metal Sleeve Star Brass Electrical Wire Terminal N/A 6 mm N/A 0.093 in N/A 0.385 in
N/A 0.093 Inch (in) Maximum Length Nylon Insulated Metal Sleeve Star Steel Electrical Wire Terminal N/A 6 mm N/A 0.093 in N/A 0.385 in
N/A 0.700 Inch (in) Maximum Length Non Insulated Butted Seam Star Brass Electrical Wire Terminal N/A 8 mm N/A 0.700 in N/A 0.385 in
N/A 0.700 Inch (in) Maximum Length Non Insulated Butted Seam Star Steel Electrical Wire Terminal N/A 8 mm N/A 0.700 in N/A 0.385 in
N/A 0.093 Inch (in) Maximum Length Polyvinyl Chloride (PVC) Insulated Star Brass Electrical Wire Terminal N/A 8 mm N/A 0.093 in N/A 0.385 in
N/A 0.093 Inch (in) Maximum Length Polyvinyl Chloride (PVC) Insulated Star Steel Electrical Wire Terminal N/A 8 mm N/A 0.093 in N/A 0.385 in
N/A 0.093 Inch (in) Maximum Length Nylon Insulated Metal Sleeve Star Brass Electrical Wire Terminal N/A 8 mm N/A 0.093 in N/A 0.385 in
N/A 0.093 Inch (in) Maximum Length Nylon Insulated Metal Sleeve Star Steel Electrical Wire Terminal N/A 8 mm N/A 0.093 in N/A 0.385 in
N/A 0.700 Inch (in) Maximum Length Non Insulated Butted Seam Star Brass Electrical Wire Terminal N/A 10 mm N/A 0.700 in N/A 0.385 in
N/A 0.700 Inch (in) Maximum Length Non Insulated Butted Seam Star Steel Electrical Wire Terminal N/A 10 mm N/A 0.700 in N/A 0.385 in
N/A 0.093 Inch (in) Maximum Length Polyvinyl Chloride (PVC) Insulated Star Brass Electrical Wire Terminal N/A 10 mm N/A 0.093 in N/A 0.385 in
N/A 0.093 Inch (in) Maximum Length Polyvinyl Chloride (PVC) Insulated Star Steel Electrical Wire Terminal N/A 10 mm N/A 0.093 in N/A 0.385 in
N/A 0.093 Inch (in) Maximum Length Nylon Insulated Metal Sleeve Star Brass Electrical Wire Terminal N/A 10 mm N/A 0.093 in N/A 0.385 in
N/A 0.093 Inch (in) Maximum Length Nylon Insulated Metal Sleeve Star Steel Electrical Wire Terminal N/A 10 mm N/A 0.093 in N/A 0.385 in
