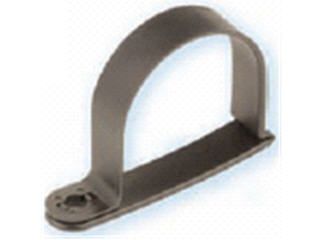

P-Type Plastic Reusable Snap Lock Cable Clamps
Routing Clamps
These Reusable Snap Lock Cable Clamps are used to clamp cable or tubing securely into place. The locking feature allows preassembly on wire for ease of installation. The clamps resist corrosion, salt water, weak acids, grease, and common solvents (this feature is not assessed by UL certification or testing).
Item # |
Item Name |
Mounting Hole Size |
Bundle Size |
Maximum Temperature Rating |
|---|---|---|---|---|
| 20301226-A02 | N/A 1.125 Inch (in) Bundle Size P-Type Plastic Reusable Snap Lock Natural Cable Clamp | Mounting Hole Size N/A 0.190 in4.80 mm | Bundle Size N/A 1.125 in28.80 mm | Maximum Temperature Rating N/A 221 ºF105 ºC |
| 20301226-A03 | N/A 1.125 Inch (in) Bundle Size P-Type Plastic Reusable Snap Lock Black Cable Clamp | Mounting Hole Size N/A 0.190 in4.80 mm | Bundle Size N/A 1.125 in28.80 mm | Maximum Temperature Rating N/A 221 ºF105 ºC |
| 20301227-A02 | N/A 1.187 Inch (in) Bundle Size P-Type Plastic Reusable Snap Lock Natural Cable Clamp | Mounting Hole Size N/A 0.190 in4.80 mm | Bundle Size N/A 1.187 in30.10 mm | Maximum Temperature Rating N/A 221 ºF105 ºC |
| 20301227-A03 | N/A 1.187 Inch (in) Bundle Size P-Type Plastic Reusable Snap Lock Black Cable Clamp | Mounting Hole Size N/A 0.190 in4.80 mm | Bundle Size N/A 1.187 in30.10 mm | Maximum Temperature Rating N/A 221 ºF105 ºC |
| 20301228-A02 | N/A 1.250 Inch (in) Bundle Size P-Type Plastic Reusable Snap Lock Natural Cable Clamp | Mounting Hole Size N/A 0.190 in4.80 mm | Bundle Size N/A 1.250 in31.10 mm | Maximum Temperature Rating N/A 221 ºF105 ºC |
| 20301228-A03 | N/A 1.250 Inch (in) Bundle Size P-Type Plastic Reusable Snap Lock Black Cable Clamp | Mounting Hole Size N/A 0.190 in4.80 mm | Bundle Size N/A 1.250 in31.10 mm | Maximum Temperature Rating N/A 221 ºF105 ºC |
| 20301229-A02 | N/A 1.375 Inch (in) Bundle Size P-Type Plastic Reusable Snap Lock Natural Cable Clamp | Mounting Hole Size N/A 0.190 in4.80 mm | Bundle Size N/A 1.375 in34.90 mm | Maximum Temperature Rating N/A 221 ºF105 ºC |
| 20301229-A03 | N/A 1.375 Inch (in) Bundle Size P-Type Plastic Reusable Snap Lock Black Cable Clamp | Mounting Hole Size N/A 0.190 in4.80 mm | Bundle Size N/A 1.375 in34.90 mm | Maximum Temperature Rating N/A 221 ºF105 ºC |
| 20301230-A02 | N/A 1.500 Inch (in) Bundle Size P-Type Plastic Reusable Snap Lock Natural Cable Clamp | Mounting Hole Size N/A 0.190 in4.80 mm | Bundle Size N/A 1.500 in38.10 mm | Maximum Temperature Rating N/A 221 ºF105 ºC |
| 20301230-A03 | N/A 1.500 Inch (in) Bundle Size P-Type Plastic Reusable Snap Lock Black Cable Clamp | Mounting Hole Size N/A 0.190 in4.80 mm | Bundle Size N/A 1.500 in38.10 mm | Maximum Temperature Rating N/A 221 ºF105 ºC |
