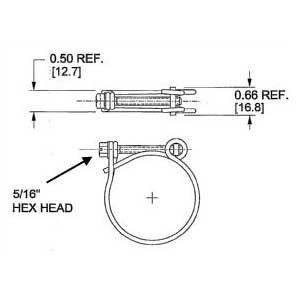

Double Wire Screw Clamps with Swivel Nut provide even pressure and double sealing on hoses. Two 12 gauge wires close with a 5/16" hex head screw and feature an integrated swivel nut. This prevents loss and supplies perfect alignment to the screw every time.
1 - 25 of 27 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items

Item #

Item Name

Ultimate Torque

Clamp Size

Wire Diameter

N/A 0.94 to 1.06 Inch (in) Range Double Wire Screw Clamp with Swivel Nut N/A 40 in·lb N/A 0.94 to 1.06 in23.9 to 26.9 mm N/A 12 gauge
N/A 0.99 to 1.12 Inch (in) Range Double Wire Screw Clamp with Swivel Nut N/A 40 in·lb N/A 0.99 to 1.12 in25.1 to 28.4 mm N/A 12 gauge
N/A 1.06 to 1.19 Inch (in) Range Double Wire Screw Clamp with Swivel Nut N/A 40 in·lb N/A 1.06 to 1.19 in26.9 to 30.2 mm N/A 12 gauge
N/A 1.12 to 1.25 Inch (in) Range Double Wire Screw Clamp with Swivel Nut N/A 40 in·lb N/A 1.12 to 1.25 in28.4 to 31.8 mm N/A 12 gauge
N/A 1.16 to 1.31 Inch (in) Range Double Wire Screw Clamp with Swivel Nut N/A 40 in·lb N/A 1.16 to 1.31 in29.5 to 33.3 mm N/A 12 gauge
N/A 1.19 to 1.38 Inch (in) Range Double Wire Screw Clamp with Swivel Nut N/A 40 in·lb N/A 1.19 to 1.38 in30.2 to 35.1 mm N/A 12 gauge
N/A 1.25 to 1.44 Inch (in) Range Double Wire Screw Clamp with Swivel Nut N/A 40 in·lb N/A 1.25 to 1.44 in31.8 to 36.6 mm N/A 12 gauge
N/A 1.31 to 1.5 Inch (in) Range Double Wire Screw Clamp with Swivel Nut N/A 40 in·lb N/A 1.31 to 1.5 in33.3 to 38.1 mm N/A 12 gauge
N/A 1.38 to 1.56 Inch (in) Range Double Wire Screw Clamp with Swivel Nut N/A 40 in·lb N/A 1.38 to 1.56 in35.1 to 39.6 mm N/A 12 gauge
N/A 1.44 to 1.62 Inch (in) Range Double Wire Screw Clamp with Swivel Nut N/A 40 in·lb N/A 1.44 to 1.62 in36.6 to 41.1 mm N/A 12 gauge
N/A 1.5 to 1.69 Inch (in) Range Double Wire Screw Clamp with Swivel Nut N/A 40 in·lb N/A 1.5 to 1.69 in38.1 to 42.9 mm N/A 12 gauge
N/A 1.56 to 1.75 Inch (in) Range Double Wire Screw Clamp with Swivel Nut N/A 40 in·lb N/A 1.56 to 1.75 in36.6 to 44.5 mm N/A 12 gauge
N/A 1.62 to 1.81 Inch (in) Range Double Wire Screw Clamp with Swivel Nut N/A 40 in·lb N/A 1.62 to 1.81 in41.1 to 46 mm N/A 12 gauge
N/A 1.69 to 1.88 Inch (in) Range Double Wire Screw Clamp with Swivel Nut N/A 40 in·lb N/A 1.69 to 1.88 in42.9 to 47.8 mm N/A 12 gauge
N/A 1.75 to 1.94 Inch (in) Range Double Wire Screw Clamp with Swivel Nut N/A 40 in·lb N/A 1.75 to 1.94 in44.5 to 49.3 mm N/A 12 gauge
N/A 1.81 to 2 Inch (in) Range Double Wire Screw Clamp with Swivel Nut N/A 40 in·lb N/A 1.81 to 2 in46 to 50.8 mm N/A 12 gauge
N/A 1.88 to 2.06 Inch (in) Range Double Wire Screw Clamp with Swivel Nut N/A 40 in·lb N/A 1.88 to 2.06 in47.8 to 52.3 mm N/A 12 gauge
N/A 1.94 to 2.12 Inch (in) Range Double Wire Screw Clamp with Swivel Nut N/A 40 in·lb N/A 1.94 to 2.12 in49.3 to 53.8 mm N/A 12 gauge
N/A 1.97 to 2.19 Inch (in) Range Double Wire Screw Clamp with Swivel Nut N/A 40 in·lb N/A 1.97 to 2.19 in50 to 55.6 mm N/A 12 gauge
N/A 2.03 to 2.25 Inch (in) Range Double Wire Screw Clamp with Swivel Nut N/A 40 in·lb N/A 2.03 to 2.25 in51.6 to 57.2 mm N/A 12 gauge
N/A 2.12 to 2.31 Inch (in) Range Double Wire Screw Clamp with Swivel Nut N/A 40 in·lb N/A 2.12 to 2.31 in53.8 to 58.7 mm N/A 12 gauge
N/A 2.19 to 2.38 Inch (in) Range Double Wire Screw Clamp with Swivel Nut N/A 40 in·lb N/A 2.19 to 2.38 in55.6 to 60.5 mm N/A 12 gauge
N/A 2.25 to 2.44 Inch (in) Range Double Wire Screw Clamp with Swivel Nut N/A 40 in·lb N/A 2.25 to 2.44 in57.2 to 62 mm N/A 12 gauge
N/A 2.28 to 2.5 Inch (in) Range Double Wire Screw Clamp with Swivel Nut N/A 40 in·lb N/A 2.28 to 2.5 in57.9 to 63.5 mm N/A 12 gauge
N/A 2.34 to 2.56 Inch (in) Range Double Wire Screw Clamp with Swivel Nut N/A 40 in·lb N/A 2.34 to 2.56 in59.4 to 65 mm N/A 12 gauge
