Acorn Type Push-On Shaft Retainers
Shaft & Bolt Retainers

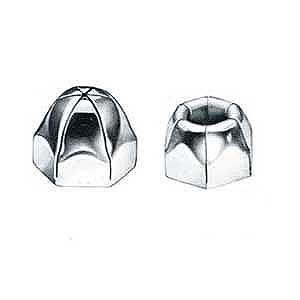

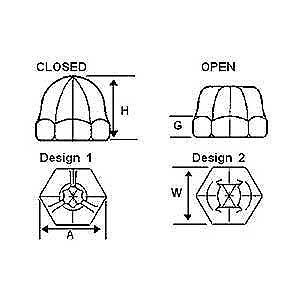

Acorn Type Push-On Shaft Retainers come in 2 styles, open or closed at the top, and fit onto studs, rods or wire. The closed version provides a finished look and covers any rough edges. The open version allows more options on length of the shaft, as it can pass through the top of the acorn.
Item # |
Item Name |
Material Thickness (Decimal) |
Overall Height |
Hex Height |
|---|---|---|---|---|
| 02P617001-11Q | N/A 0.261 Inch (in) Overall Height Acorn Type Push-On Shaft Retainer | Material Thickness (Decimal) N/A 0.014 in0.35 mm | Overall Height N/A 0.261 in6.63 mm | Hex Height N/A 0.084 in2.13 mm |
| 02P617009-11Q | N/A 0.235 Inch (in) Overall Height Acorn Type Push-On Shaft Retainer | Material Thickness (Decimal) N/A 0.014 in0.35 mm | Overall Height N/A 0.235 in5.97 mm | Hex Height N/A 0.084 in2.13 mm |
| 02PPK120000 | N/A 0.235 Inch (in) Overall Height Acorn Type Push-On Shaft Retainer | Material Thickness (Decimal) N/A 0.014 in0.35 mm | Overall Height N/A 0.235 in5.97 mm | Hex Height N/A 0.084 in2.13 mm |
| 02PPC120000 | N/A 0.261 Inch (in) Overall Height Acorn Type Push-On Shaft Retainer | Material Thickness (Decimal) N/A 0.014 in0.35 mm | Overall Height N/A 0.261 in6.63 mm | Hex Height N/A 0.084 in2.13 mm |
| 02P617003-11Q | N/A 0.295 Inch (in) Overall Height Acorn Type Push-On Shaft Retainer | Material Thickness (Decimal) N/A 0.012 in0.3 mm | Overall Height N/A 0.295 in7.49 mm | Hex Height N/A 0.097 in2.46 mm |
| 02PPC156000 | N/A 0.295 Inch (in) Overall Height Acorn Type Push-On Shaft Retainer | Material Thickness (Decimal) N/A 0.012 in0.3 mm | Overall Height N/A 0.295 in7.49 mm | Hex Height N/A 0.097 in2.46 mm |
| 02P617012-00Q | N/A 0.395 Inch (in) Overall Height Acorn Type Push-On Shaft Retainer | Material Thickness (Decimal) N/A 0.023 in0.580 mm | Overall Height N/A 0.395 in10.03 mm | Hex Height N/A 0.157 in3.99 mm |
| 02P617012-06Q | N/A 0.395 Inch (in) Overall Height Acorn Type Push-On Shaft Retainer | Material Thickness (Decimal) N/A 0.023 in0.580 mm | Overall Height N/A 0.395 in10.03 mm | Hex Height N/A 0.157 in3.99 mm |
| 02PPK250000 | N/A 0.395 Inch (in) Overall Height Acorn Type Push-On Shaft Retainer | Material Thickness (Decimal) N/A 0.023 in0.580 mm | Overall Height N/A 0.395 in10.03 mm | Hex Height N/A 0.157 in3.99 mm |
| 02PPC250000 | N/A 0.484 Inch (in) Overall Height Acorn Type Push-On Shaft Retainer | Material Thickness (Decimal) N/A 0.023 in0.580 mm | Overall Height N/A 0.484 in12.29 mm | Hex Height N/A 0.157 in3.99 mm |
