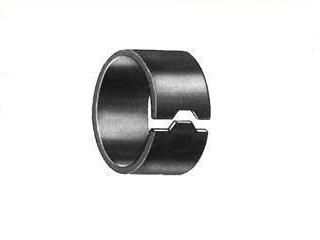

Compression Rings On EFC International

Compression Rings were originally developed for use in all types of knob-to-shaft applications on thermoplastic nobs with split hubs. They are also used as a Compression Limiter inside a bolt hole, to protect plastics from cracking when the bolt is tightened.

1 - 25 of 79 | Results Per Page | View | Unit of Measure

1 2 3 4

Request Information Compare Items

Item #	Item Name	Band Width (Decimal)	Inside Diameter	Material Thickness (Decimal)

18000140-01	N/A 0.150 Inch (in) Inside Diameter Compression Ring	N/A 0.125 in3.18 mm	N/A 0.150 in3.81 mm	N/A 0.012 in0.3 mm
18000141-01	N/A 0.187 Inch (in) Inside Diameter Compression Ring	N/A 0.375 in9.53 mm	N/A 0.187 in4.75 mm	N/A 0.020 in0.510 mm
18000142-01	N/A 0.192 Inch (in) Inside Diameter Compression Ring	N/A 0.125 in3.18 mm	N/A 0.192 in4.88 mm	N/A 0.012 in0.3 mm
18000143-01	N/A 0.192 Inch (in) Inside Diameter Compression Ring	N/A 0.125 in3.18 mm	N/A 0.192 in4.88 mm	N/A 0.017 in0.430 mm
18000144-01	N/A 0.224 Inch (in) Inside Diameter Compression Ring	N/A 0.125 in3.18 mm	N/A 0.224 in5.69 mm	N/A 0.012 in0.3 mm
18000145-01	N/A 0.224 Inch (in) Inside Diameter Compression Ring	N/A 0.125 in3.18 mm	N/A 0.224 in5.69 mm	N/A 0.014 in0.36 mm
18000146-01	N/A 0.224 Inch (in) Inside Diameter Compression Ring	N/A 0.125 in3.18 mm	N/A 0.224 in5.69 mm	N/A 0.017 in0.430 mm
18000147-01	N/A 0.224 Inch (in) Inside Diameter Compression Ring	N/A 0.125 in3.18 mm	N/A 0.224 in5.69 mm	N/A 0.020 in0.510 mm
18000148-01	N/A 0.230 Inch (in) Inside Diameter Compression Ring	N/A 0.250 in6.35 mm	N/A 0.230 in5.84 mm	N/A 0.017 in0.430 mm
18000149-01	N/A 0.234 Inch (in) Inside Diameter Compression Ring	N/A 0.125 in3.18 mm	N/A 0.234 in5.94 mm	N/A 0.012 in0.3 mm
18000150-01	N/A 0.234 Inch (in) Inside Diameter Compression Ring	N/A 0.250 in6.35 mm	N/A 0.234 in5.94 mm	N/A 0.012 in0.3 mm
18000151-01	N/A 0.234 Inch (in) Inside Diameter Compression Ring	N/A 0.188 in4.78 mm	N/A 0.234 in5.94 mm	N/A 0.020 in0.510 mm
18000152-01	N/A 0.261 Inch (in) Inside Diameter Compression Ring	N/A 0.125 in3.18 mm	N/A 0.261 in6.63 mm	N/A 0.012 in0.3 mm
18000153-01	N/A 0.261 Inch (in) Inside Diameter Compression Ring	N/A 0.125 in3.18 mm	N/A 0.261 in6.63 mm	N/A 0.014 in0.36 mm
18000154-01	N/A 0.261 Inch (in) Inside Diameter Compression Ring	N/A 0.125 in3.18 mm	N/A 0.261 in6.63 mm	N/A 0.017 in0.430 mm
18000155-01	N/A 0.261 Inch (in) Inside Diameter Compression Ring	N/A 0.125 in3.18 mm	N/A 0.261 in6.63 mm	N/A 0.020 in0.510 mm
18000156-01	N/A 0.261 Inch (in) Inside Diameter Compression Ring	N/A 0.250 in6.35 mm	N/A 0.261 in6.63 mm	N/A 0.020 in0.510 mm
18000157-01	N/A 0.270 Inch (in) Inside Diameter Compression Ring	N/A 0.200 in5.08 mm	N/A 0.270 in6.86 mm	N/A 0.017 in0.430 mm
18000158-01	N/A 0.271 Inch (in) Inside Diameter Compression Ring	N/A 0.250 in6.35 mm	N/A 0.271 in6.88 mm	N/A 0.014 in0.36 mm
18000159-01	N/A 0.284 Inch (in) Inside Diameter Compression Ring	N/A 0.250 in6.35 mm	N/A 0.284 in7.21 mm	N/A 0.014 in0.36 mm
18000160-01	N/A 0.284 Inch (in) Inside Diameter Compression Ring	N/A 0.250 in6.35 mm	N/A 0.284 in7.21 mm	N/A 0.020 in0.510 mm
18000161-01	N/A 0.294 Inch (in) Inside Diameter Compression Ring	N/A 0.250 in6.35 mm	N/A 0.294 in7.47 mm	N/A 0.014 in0.36 mm
18000162-01	N/A 0.300 Inch (in) Inside Diameter Compression Ring	N/A 0.250 in6.35 mm	N/A 0.300 in7.62 mm	N/A 0.012 in0.3 mm
18000163-01	N/A 0.300 Inch (in) Inside Diameter Compression Ring	N/A 0.188 in4.78 mm	N/A 0.300 in7.62 mm	N/A 0.014 in0.36 mm
18000164-01	N/A 0.300 Inch (in) Inside Diameter Compression Ring	N/A 0.250 in6.35 mm	N/A 0.300 in7.62 mm	N/A 0.014 in0.36 mm
