Tubular Type Threaded Bolt Retainers
Shaft & Bolt Retainers

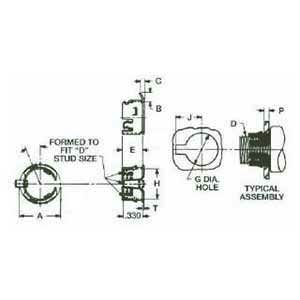

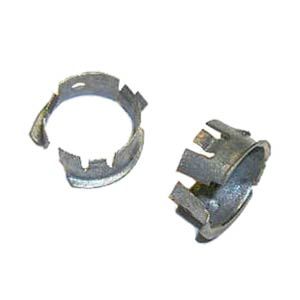

Tubular Type Bolt Retainers team up with threaded studs or rivets to virtually "nail" assemblies together. These clips are ideal for making fast, practical attachments where only one side of an assembly is accessible. They are perfect for attaching name plates, instruction plates, grille work, decorative trim, knobs, insulation dust shields and other lightweight equipment.
Item # |
Item Name |
Panel Size |
Material Thickness (Decimal) |
Thread Diameter |
Material |
|---|---|---|---|---|---|
| 01C55114097 | N/A 1/4-20 Thread Diameter Tubular Type Threaded Bolt Retainer | Panel Size N/A 0.097 to 0.113 in | Material Thickness (Decimal) N/A 0.012 in | Thread Diameter N/A 1/4-20 | Material N/A Heat-Treated Spring Steel is Standard. May be Available in Stainless Steel, Beryllium Copper, Phosphor Bronze or Brass |
| 01260014-01Q | N/A 5/16-18 Thread Diameter Tubular Type Threaded Bolt Retainer | Panel Size N/A | Material Thickness (Decimal) N/A | Thread Diameter N/A 5/16-18 | Material N/A Heat-Treated Spring Steel is Standard. May be Available in Stainless Steel, Beryllium Copper, Phosphor Bronze or Brass |
| 01449202-01Q | N/A 3/8-16 Thread Diameter Tubular Type Threaded Bolt Retainer | Panel Size N/A | Material Thickness (Decimal) N/A 0.01 in | Thread Diameter N/A 3/8-16 | Material N/A Heat-Treated Spring Steel is Standard. May be Available in Stainless Steel, Beryllium Copper, Phosphor Bronze or Brass |
| 01C49256110 | N/A 1/2-20 Thread Diameter Tubular Type Threaded Bolt Retainer | Panel Size N/A 0.110 to 0.130 in | Material Thickness (Decimal) N/A 0.014 in | Thread Diameter N/A 1/2-20 | Material N/A Heat-Treated Spring Steel is Standard. May be Available in Stainless Steel, Beryllium Copper, Phosphor Bronze or Brass |
| 01C49256082 | N/A 1/2-20 Thread Diameter Tubular Type Threaded Bolt Retainer | Panel Size N/A 0.082 to 0.098 in | Material Thickness (Decimal) N/A 0.014 in | Thread Diameter N/A 1/2-20 | Material N/A Heat-Treated Spring Steel is Standard. May be Available in Stainless Steel, Beryllium Copper, Phosphor Bronze or Brass |
| 01C50849082 | N/A 5/8-18 Thread Diameter Tubular Type Threaded Bolt Retainer | Panel Size N/A 0.082 to 0.098 in | Material Thickness (Decimal) N/A 0.014 in | Thread Diameter N/A 5/8-18 | Material N/A Heat-Treated Spring Steel is Standard. May be Available in Stainless Steel, Beryllium Copper, Phosphor Bronze or Brass |
| 01279031-03Q | N/A 5/8-18 Thread Diameter Tubular Type Threaded Bolt Retainer | Panel Size N/A 0.094 to 0.108 in | Material Thickness (Decimal) N/A 0.014 in | Thread Diameter N/A 5/8-18 | Material N/A Heat-Treated Spring Steel is Standard. May be Available in Stainless Steel, Beryllium Copper, Phosphor Bronze or Brass |
| 01C56388180M | N/A 5/8-18 Thread Diameter Tubular Type Threaded Bolt Retainer | Panel Size N/A 1.80 to 2.10 mm | Material Thickness (Decimal) N/A 0.430 in | Thread Diameter N/A 5/8-18 | Material N/A Heat-Treated Spring Steel is Standard. May be Available in Stainless Steel, Beryllium Copper, Phosphor Bronze or Brass |
| 01C56388240M | N/A 5/8-18 Thread Diameter Tubular Type Threaded Bolt Retainer | Panel Size N/A 2.40 to 2.80 mm | Material Thickness (Decimal) N/A 0.430 in | Thread Diameter N/A 5/8-18 | Material N/A Heat-Treated Spring Steel is Standard. May be Available in Stainless Steel, Beryllium Copper, Phosphor Bronze or Brass |
| 01C53781017 | N/A 8-32 Thread Diameter Tubular Type Threaded Bolt Retainer | Panel Size N/A | Material Thickness (Decimal) N/A | Thread Diameter N/A 8-32 | Material N/A Heat-Treated Spring Steel is Standard. May be Available in Stainless Steel, Beryllium Copper, Phosphor Bronze or Brass |
| 01C57768043M | N/A M10 x 1.50 Thread Diameter Tubular Type Threaded Bolt Retainer | Panel Size N/A 3.81 to 4.22 mm | Material Thickness (Decimal) N/A 0.430 in | Thread Diameter N/A M10 x 1.50 | Material N/A Heat-Treated Spring Steel is Standard. May be Available in Stainless Steel, Beryllium Copper, Phosphor Bronze or Brass |
| 01C33966305M | N/A M8 x 1.25 Thread Diameter Tubular Type Threaded Bolt Retainer | Panel Size N/A 8.80 to 9.20 mm | Material Thickness (Decimal) N/A | Thread Diameter N/A M8 x 1.25 | Material N/A Heat-Treated Spring Steel is Standard. May be Available in Stainless Steel, Beryllium Copper, Phosphor Bronze or Brass |
