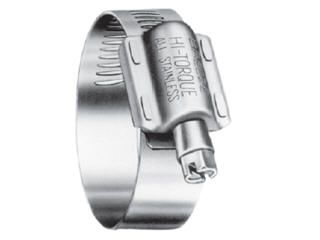

5/8 Inch (in) Hi-Torque Heavy Duty Marine Worm Gear Clamps
Slotted Worm Gear Clamps
These 5/8" Hi-Torque Heavy Duty Marine Worm Gear Clamps are guaranteed to withstand over 4-times the SAE standard requirements for worm gear clamps, and are approved for Marine use. Their heavy-gauge housing is orbitally riveted to a unique saddle, designed to keep 8 screw threads simultaneously engaged in the band. Coupled with their wider and thicker band (0.625" x 0.028"), this provides exceptional torque drive and 3-times the strength of comparable clamps. These clamps are ideal for applications where conventional clamps are inadequate, and can even replace the need for double and triple clamping.
They are made from 100% 316 Stainless Steel, or 301/304 SS Band, Housing & Saddle with 305 SS Hex-Head Slotted Screw.
They are made from 100% 316 Stainless Steel, or 301/304 SS Band, Housing & Saddle with 305 SS Hex-Head Slotted Screw.
1 2
Item # |
Item Name |
Maximum Clamp Size |
Minimum Clamp Size |
Band Width (Decimal) |
|---|---|---|---|---|
| 15B000100-3005M | N/A 1.750 Inch (in) Maximum Size Hi-Torque Heavy Duty Marine Worm Gear Clamp | Maximum Clamp Size N/A 1.750 in45 mm | Minimum Clamp Size N/A 25 mm1.000 in | Band Width (Decimal) N/A 15.80 mm |
| 15B000100-316M | N/A 1.750 Inch (in) Maximum Size Hi-Torque Heavy Duty Marine Worm Gear Clamp | Maximum Clamp Size N/A 1.750 in45 mm | Minimum Clamp Size N/A 25 mm1.000 in | Band Width (Decimal) N/A 15.80 mm |
| 15B000101-3005M | N/A 2.125 Inch (in) Maximum Size Hi-Torque Heavy Duty Marine Worm Gear Clamp | Maximum Clamp Size N/A 2.125 in54.00 mm | Minimum Clamp Size N/A 32 mm1.250 in | Band Width (Decimal) N/A 15.80 mm |
| 15B000101-316M | N/A 2.625 Inch (in) Maximum Size Hi-Torque Heavy Duty Marine Worm Gear Clamp | Maximum Clamp Size N/A 2.625 in54.00 mm | Minimum Clamp Size N/A 32 mm1.250 in | Band Width (Decimal) N/A 15.80 mm |
| 15B000103-3005M | N/A 2.625 Inch (in) Maximum Size Hi-Torque Heavy Duty Marine Worm Gear Clamp | Maximum Clamp Size N/A 2.625 in67.00 mm | Minimum Clamp Size N/A 45.00 mm1.750 in | Band Width (Decimal) N/A 15.80 mm |
| 15B000103-316M | N/A 2.625 Inch (in) Maximum Size Hi-Torque Heavy Duty Marine Worm Gear Clamp | Maximum Clamp Size N/A 2.625 in67.00 mm | Minimum Clamp Size N/A 45.00 mm1.750 in | Band Width (Decimal) N/A 15.80 mm |
| 15B000105-3005M | N/A 3.125 Inch (in) Maximum Size Hi-Torque Heavy Duty Marine Worm Gear Clamp | Maximum Clamp Size N/A 3.125 in79.00 mm | Minimum Clamp Size N/A 57.00 mm2.250 in | Band Width (Decimal) N/A 15.80 mm |
| 15B000105-316M | N/A 3.125 Inch (in) Maximum Size Hi-Torque Heavy Duty Marine Worm Gear Clamp | Maximum Clamp Size N/A 3.125 in79.00 mm | Minimum Clamp Size N/A 57.00 mm2.250 in | Band Width (Decimal) N/A 15.80 mm |
| 15B000106-3005M | N/A 3.625 Inch (in) Maximum Size Hi-Torque Heavy Duty Marine Worm Gear Clamp | Maximum Clamp Size N/A 3.625 in92.00 mm | Minimum Clamp Size N/A 70 mm2.750 in | Band Width (Decimal) N/A 15.80 mm |
| 15B000106-316M | N/A 3.625 Inch (in) Maximum Size Hi-Torque Heavy Duty Marine Worm Gear Clamp | Maximum Clamp Size N/A 3.625 in92.00 mm | Minimum Clamp Size N/A 70 mm2.750 in | Band Width (Decimal) N/A 15.80 mm |
| 15B000107-3005M | N/A 4.125 Inch (in) Maximum Size Hi-Torque Heavy Duty Marine Worm Gear Clamp | Maximum Clamp Size N/A 4.125 in105.00 mm | Minimum Clamp Size N/A 83.00 mm3.250 in | Band Width (Decimal) N/A 15.80 mm |
| 15B000107-316M | N/A 4.125 Inch (in) Maximum Size Hi-Torque Heavy Duty Marine Worm Gear Clamp | Maximum Clamp Size N/A 4.125 in105.00 mm | Minimum Clamp Size N/A 83.00 mm3.250 in | Band Width (Decimal) N/A 15.80 mm |
| 15B000108-3005M | N/A 4.625 Inch (in) Maximum Size Hi-Torque Heavy Duty Marine Worm Gear Clamp | Maximum Clamp Size N/A 4.625 in118.00 mm | Minimum Clamp Size N/A 95.00 mm3.750 in | Band Width (Decimal) N/A 15.80 mm |
| 15B000108-316M | N/A 4.625 Inch (in) Maximum Size Hi-Torque Heavy Duty Marine Worm Gear Clamp | Maximum Clamp Size N/A 4.625 in118.00 mm | Minimum Clamp Size N/A 95.00 mm3.750 in | Band Width (Decimal) N/A 15.80 mm |
| 15B000110-3005M | N/A 5.125 Inch (in) Maximum Size Hi-Torque Heavy Duty Marine Worm Gear Clamp | Maximum Clamp Size N/A 5.125 in130 mm | Minimum Clamp Size N/A 108.00 mm4.250 in | Band Width (Decimal) N/A 15.80 mm |
| 15B000110-316M | N/A 5.125 Inch (in) Maximum Size Hi-Torque Heavy Duty Marine Worm Gear Clamp | Maximum Clamp Size N/A 5.125 in130 mm | Minimum Clamp Size N/A 108.00 mm4.250 in | Band Width (Decimal) N/A 15.80 mm |
| 15B000111-3005M | N/A 5.625 Inch (in) Maximum Size Hi-Torque Heavy Duty Marine Worm Gear Clamp | Maximum Clamp Size N/A 5.625 in143.00 mm | Minimum Clamp Size N/A 121.00 mm4.750 in | Band Width (Decimal) N/A 15.80 mm |
| 15B000111-316M | N/A 5.625 Inch (in) Maximum Size Hi-Torque Heavy Duty Marine Worm Gear Clamp | Maximum Clamp Size N/A 5.625 in143.00 mm | Minimum Clamp Size N/A 121.00 mm4.750 in | Band Width (Decimal) N/A 15.80 mm |
| 15B000112-3005M | N/A 6.125 Inch (in) Maximum Size Hi-Torque Heavy Duty Marine Worm Gear Clamp | Maximum Clamp Size N/A 6.125 in156.00 mm | Minimum Clamp Size N/A 133.00 mm5.250 in | Band Width (Decimal) N/A 15.80 mm |
| 15B000112-316M | N/A 6.125 Inch (in) Maximum Size Hi-Torque Heavy Duty Marine Worm Gear Clamp | Maximum Clamp Size N/A 6.125 in156.00 mm | Minimum Clamp Size N/A 133.00 mm5.250 in | Band Width (Decimal) N/A 15.80 mm |
| 15B000113-3005M | N/A 6.625 Inch (in) Maximum Size Hi-Torque Heavy Duty Marine Worm Gear Clamp | Maximum Clamp Size N/A 6.625 in168.00 mm | Minimum Clamp Size N/A 146.00 mm5.750 in | Band Width (Decimal) N/A 15.80 mm |
| 15B000113-316M | N/A 6.625 Inch (in) Maximum Size Hi-Torque Heavy Duty Marine Worm Gear Clamp | Maximum Clamp Size N/A 6.625 in168.00 mm | Minimum Clamp Size N/A 146.00 mm5.750 in | Band Width (Decimal) N/A 15.80 mm |
| 15B000115-3005M | N/A 7.125 Inch (in) Maximum Size Hi-Torque Heavy Duty Marine Worm Gear Clamp | Maximum Clamp Size N/A 7.125 in181.00 mm | Minimum Clamp Size N/A 159.00 mm6.250 in | Band Width (Decimal) N/A 15.80 mm |
| 15B000115-316M | N/A 7.125 Inch (in) Maximum Size Hi-Torque Heavy Duty Marine Worm Gear Clamp | Maximum Clamp Size N/A 7.125 in181.00 mm | Minimum Clamp Size N/A 159.00 mm6.250 in | Band Width (Decimal) N/A 15.80 mm |
| 15B000116-3005M | N/A 7.625 Inch (in) Maximum Size Hi-Torque Heavy Duty Marine Worm Gear Clamp | Maximum Clamp Size N/A 7.625 in194.00 mm | Minimum Clamp Size N/A 172.00 mm6.750 in | Band Width (Decimal) N/A 15.80 mm |
