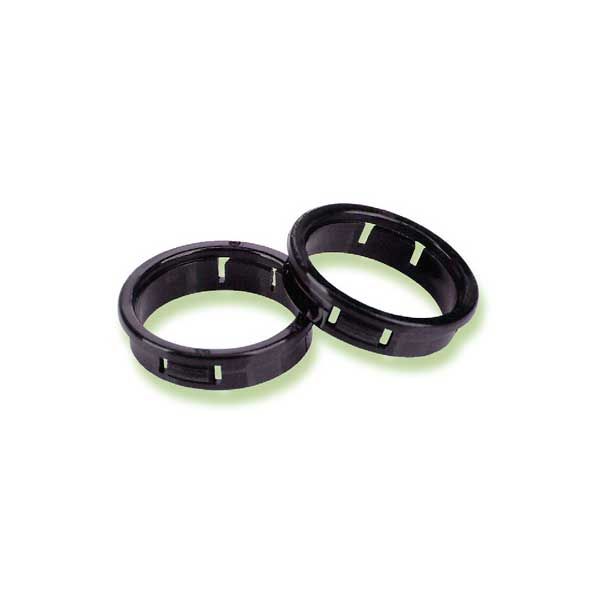

Thin Panel Bushings with Multiple Locking Steps fit and finish your applications with ease. They can be used in panels as thin as 0.020 in (0.5 mm). The bushing's locking fingers easily snap into holes and it can withstand a push back force of greater than 35 pounds.

1 - 20 of 20 | Results Per Page | View | Unit of Measure

1

Request Information Compare Items

Item #	Item Name	Material	Mounting Hole Diameter	Overall Height

202859N	N/A 0.218 Inch (in) Mounting Hole Diameter Thin Panel Bushing	N/A Nylon 6/6	N/A 0.218 in5.5 mm	N/A 0.237 in6.00 mm
202860N	N/A 0.218 Inch (in) Mounting Hole Diameter Thin Panel Bushing	N/A Nylon 6/6	N/A 0.218 in5.5 mm	N/A 0.237 in6.00 mm
202003N	N/A 0.25 Inch (in) Mounting Hole Diameter Thin Panel Bushing	N/A Nylon 6/6	N/A 0.25 in6.4 mm	N/A 0.237 in6.00 mm
202004N	N/A 0.25 Inch (in) Mounting Hole Diameter Thin Panel Bushing	N/A Nylon 6/6	N/A 0.25 in6.4 mm	N/A 0.237 in6.00 mm
20301531-PA6603	N/A 0.281 Inch (in) Mounting Hole Diameter Thin Panel Bushing	N/A Nylon 6/6	N/A 0.281 in7.1 mm	N/A 0.237 in6.00 mm
202854N	N/A 0.281 Inch (in) Mounting Hole Diameter Thin Panel Bushing	N/A Nylon 6/6	N/A 0.281 in7.1 mm	N/A 0.237 in6.00 mm
202810N	N/A 0.312 Inch (in) Mounting Hole Diameter Thin Panel Bushing	N/A Nylon 6/6	N/A 0.312 in7.9 mm	N/A 0.237 in6.00 mm
202811N	N/A 0.312 Inch (in) Mounting Hole Diameter Thin Panel Bushing	N/A Nylon 6/6	N/A 0.312 in7.9 mm	N/A 0.237 in6.00 mm
202856N	N/A 0.343 Inch (in) Mounting Hole Diameter Thin Panel Bushing	N/A Nylon 6/6	N/A 0.343 in8.7 mm	N/A 0.250 in6.40 mm
202857N	N/A 0.343 Inch (in) Mounting Hole Diameter Thin Panel Bushing	N/A Nylon 6/6	N/A 0.343 in8.7 mm	N/A 0.250 in6.40 mm
20301530-PA6603	N/A 0.375 Inch (in) Mounting Hole Diameter Thin Panel Bushing	N/A Nylon 6/6	N/A 0.375 in9.5 mm	N/A 0.250 in6.40 mm
202804N	N/A 0.375 Inch (in) Mounting Hole Diameter Thin Panel Bushing	N/A Nylon 6/6	N/A 0.375 in9.5 mm	N/A 0.250 in6.40 mm
202820N	N/A 0.05 Inch (in) Mounting Hole Diameter Thin Panel Bushing	N/A Nylon 6/6	N/A 0.05 in12.7 mm	N/A 0.250 in6.40 mm
202821N	N/A 0.05 Inch (in) Mounting Hole Diameter Thin Panel Bushing	N/A Nylon 6/6	N/A 0.05 in12.7 mm	N/A 0.250 in6.40 mm
202827N	N/A 0.625 Inch (in) Mounting Hole Diameter Thin Panel Bushing	N/A Nylon 6/6	N/A 0.625 in15.9 mm	N/A 0.250 in6.40 mm
202828N	N/A 0.625 Inch (in) Mounting Hole Diameter Thin Panel Bushing	N/A Nylon 6/6	N/A 0.625 in15.9 mm	N/A 0.250 in6.40 mm
202836N	N/A 0.75 Inch (in) Mounting Hole Diameter Thin Panel Bushing	N/A Nylon 6/6	N/A 0.75 in19.1 mm	N/A 0.250 in6.40 mm
202837N	N/A 0.75 Inch (in) Mounting Hole Diameter Thin Panel Bushing	N/A Nylon 6/6	N/A 0.75 in19.1 mm	N/A 0.250 in6.40 mm
20301532-PA6603	N/A 0.875 Inch (in) Mounting Hole Diameter Thin Panel Bushing	N/A Nylon 6/6	N/A 0.875 in22.2 mm	N/A 0.250 in6.40 mm
202851N	N/A 0.875 Inch (in) Mounting Hole Diameter Thin Panel Bushing	N/A Nylon 6/6	N/A 0.875 in22.2 mm	N/A 0.250 in6.40 mm
