Straight Thru Strain Reliefs for Flat Cables
Strain Reliefs for Wires & Cables

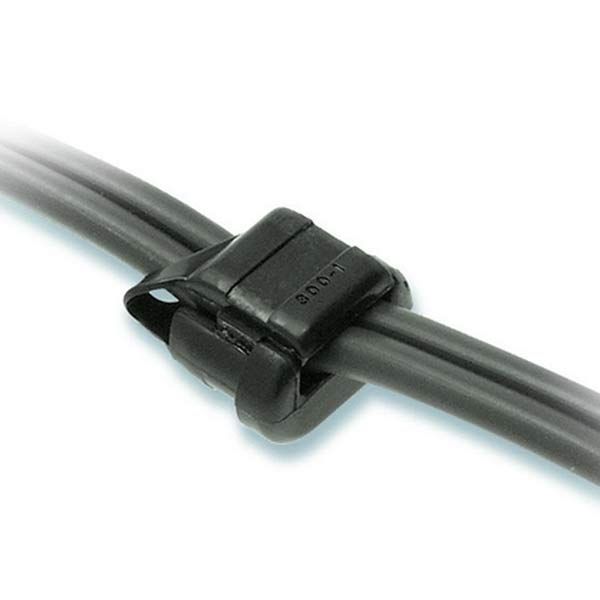

Straight Thru Strain Reliefs for Flat Cables are the most popular strain relief made. There are 23 sizes available in your choice of Black or White. All have a UL description. The installation is comprised of three easy steps: 1) simply position on the wire, 2) close the strain relief over the wire, and 3) push it into your hole.
Item # |
Item Name |
Maximum Panel Size |
Minimum Mounting Hole Size |
Minimum Wire Size |
|---|---|---|---|---|
| 20604047-A010I | N/A 0.609 Inch (in) Overall Length Straight Thru White Strain Relief for Flat Cables | Maximum Panel Size N/A 0.125 in | Minimum Mounting Hole Size N/A 0.562 in | Minimum Wire Size N/A 18/3 AWG |
| 20604047-A030I | N/A 0.609 Inch (in) Overall Length Straight Thru Black Strain Relief for Flat Cables | Maximum Panel Size N/A 0.125 in | Minimum Mounting Hole Size N/A 0.562 in | Minimum Wire Size N/A 18/3 AWG |
| 20604072-A010I | N/A 0.672 Inch (in) Overall Length Straight Thru White Strain Relief for Flat Cables | Maximum Panel Size N/A 0.125 in | Minimum Mounting Hole Size N/A 0.560 in | Minimum Wire Size N/A 18/2 AWG |
| 20604072-A030I | N/A 0.672 Inch (in) Overall Length Straight Thru Black Strain Relief for Flat Cables | Maximum Panel Size N/A 0.125 in | Minimum Mounting Hole Size N/A 0.560 in | Minimum Wire Size N/A 18/2 AWG |
| 20604076-A010I | N/A 0.781 Inch (in) Overall Length Straight Thru White Strain Relief for Flat Cables | Maximum Panel Size N/A 0.125 in | Minimum Mounting Hole Size N/A 0.750 in | Minimum Wire Size N/A 16/2 AWG |
| 20604076-A030I | N/A 0.781 Inch (in) Overall Length Straight Thru Black Strain Relief for Flat Cables | Maximum Panel Size N/A 0.125 in | Minimum Mounting Hole Size N/A 0.750 in | Minimum Wire Size N/A 16/2 AWG |
| 20604078-A010I | N/A 0.813 Inch (in) Overall Length Straight Thru White Strain Relief for Flat Cables | Maximum Panel Size N/A 0.125 in | Minimum Mounting Hole Size N/A 0.875 in | Minimum Wire Size N/A 14/2 AWG |
| 20604078-A030I | N/A 0.813 Inch (in) Overall Length Straight Thru Black Strain Relief for Flat Cables | Maximum Panel Size N/A 0.125 in | Minimum Mounting Hole Size N/A 0.875 in | Minimum Wire Size N/A 14/2 AWG |
| 20604081-A010I | N/A 0.469 Inch (in) Overall Length Straight Thru White Strain Relief for Flat Cables | Maximum Panel Size N/A 0.156 in | Minimum Mounting Hole Size N/A 0.375 in | Minimum Wire Size N/A 18/3 AWG |
| 20604081-A030I | N/A 0.469 Inch (in) Overall Length Straight Thru Black Strain Relief for Flat Cables | Maximum Panel Size N/A 0.156 in | Minimum Mounting Hole Size N/A 0.375 in | Minimum Wire Size N/A 18/3 AWG |
| 20604082-A010I | N/A 0.469 Inch (in) Overall Length Straight Thru White Strain Relief for Flat Cables | Maximum Panel Size N/A 0.100 in | Minimum Mounting Hole Size N/A 0.375 in | Minimum Wire Size N/A 18/3 AWG |
| 20604082-A030I | N/A 0.469 Inch (in) Overall Length Straight Thru Black Strain Relief for Flat Cables | Maximum Panel Size N/A 0.100 in | Minimum Mounting Hole Size N/A 0.375 in | Minimum Wire Size N/A 18/3 AWG |
