Heavy Duty T-Bolt Clamps
T-Bolt Clamps

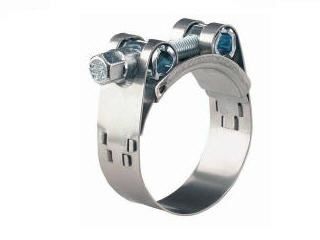

Heavy Duty T-Bolts are strong hose clamps designed primarily for use in applications with stringent requirements. These T-Bolts are particularly suited for sealing suction and pressure lines with plastic or steel reinforcements and high shore hardness. Their distinguishing feature is an extremely high band tension. They also have a mechanically-locked closure with no welding points or contact corrosion. The band loops and bolts are reinforced, allowing significantly higher torques to be used and easier access to the hexagonal bolt head. These clamps meet DIN 3017 specifications.
1 2
Item # |
Item Name |
Width |
Maximum Clamp Size |
Bolt Size |
|---|---|---|---|---|
| 15N000243-304Q | N/A 17.00 Millimeter (mm) Minimum Size Heavy Duty T-Bolt Clamp | Width N/A 18 mm | Maximum Clamp Size N/A 0.748 in19.00 mm | Bolt Size N/A 0.236 in6.00 mm |
| 15N000244-304Q | N/A 19.00 Millimeter (mm) Minimum Size Heavy Duty T-Bolt Clamp | Width N/A 18 mm | Maximum Clamp Size N/A 0.827 in21.00 mm | Bolt Size N/A 0.236 in6.00 mm |
| 15N000245-304Q | N/A 21.00 Millimeter (mm) Minimum Size Heavy Duty T-Bolt Clamp | Width N/A 18 mm | Maximum Clamp Size N/A 0.906 in23.00 mm | Bolt Size N/A 0.236 in6.00 mm |
| 15N000246-304Q | N/A 23.00 Millimeter (mm) Minimum Size Heavy Duty T-Bolt Clamp | Width N/A 18 mm | Maximum Clamp Size N/A 0.984 in25 mm | Bolt Size N/A 0.236 in6.00 mm |
| 15N000247-304Q | N/A 25.00 Millimeter (mm) Minimum Size Heavy Duty T-Bolt Clamp | Width N/A 18 mm | Maximum Clamp Size N/A 1.063 in27 mm | Bolt Size N/A 0.236 in6.00 mm |
| 15N000248-304Q | N/A 27.00 Millimeter (mm) Minimum Size Heavy Duty T-Bolt Clamp | Width N/A 18 mm | Maximum Clamp Size N/A 1.142 in29.00 mm | Bolt Size N/A 0.236 in6.00 mm |
| 15N000249-304Q | N/A 29.00 Millimeter (mm) Minimum Size Heavy Duty T-Bolt Clamp | Width N/A 18 mm | Maximum Clamp Size N/A 1.220 in31.00 mm | Bolt Size N/A 0.236 in6.00 mm |
| 15N000250-304Q | N/A 31.00 Millimeter (mm) Minimum Size Heavy Duty T-Bolt Clamp | Width N/A 18 mm | Maximum Clamp Size N/A 1.339 in34.00 mm | Bolt Size N/A 0.236 in6.00 mm |
| 15N000251-304Q | N/A 34.00 Millimeter (mm) Minimum Size Heavy Duty T-Bolt Clamp | Width N/A 18 mm | Maximum Clamp Size N/A 1.457 in37.00 mm | Bolt Size N/A 0.236 in6.00 mm |
| 15N000252-304Q | N/A 37.00 Millimeter (mm) Minimum Size Heavy Duty T-Bolt Clamp | Width N/A 18 mm | Maximum Clamp Size N/A 1.575 in40 mm | Bolt Size N/A 0.236 in6.00 mm |
| 15N000253-304Q | N/A 40.00 Millimeter (mm) Minimum Size Heavy Duty T-Bolt Clamp | Width N/A 18 mm | Maximum Clamp Size N/A 1.693 in43.00 mm | Bolt Size N/A 0.236 in6.00 mm |
| 15N000254-304Q | N/A 43.00 Millimeter (mm) Minimum Size Heavy Duty T-Bolt Clamp | Width N/A 20.00 mm | Maximum Clamp Size N/A 1.850 in47.00 mm | Bolt Size N/A 0.276 in7.00 mm |
| 15N000255-304Q | N/A 47.00 Millimeter (mm) Minimum Size Heavy Duty T-Bolt Clamp | Width N/A 20.00 mm | Maximum Clamp Size N/A 2.008 in51.00 mm | Bolt Size N/A 0.276 in7.00 mm |
| 15N000256-304Q | N/A 51.00 Millimeter (mm) Minimum Size Heavy Duty T-Bolt Clamp | Width N/A 20.00 mm | Maximum Clamp Size N/A 2.165 in55.00 mm | Bolt Size N/A 0.276 in7.00 mm |
| 15N000257-304Q | N/A 55.00 Millimeter (mm) Minimum Size Heavy Duty T-Bolt Clamp | Width N/A 20.00 mm | Maximum Clamp Size N/A 2.323 in59.00 mm | Bolt Size N/A 0.276 in7.00 mm |
| 15N000258-304Q | N/A 59.00 Millimeter (mm) Minimum Size Heavy Duty T-Bolt Clamp | Width N/A 20.00 mm | Maximum Clamp Size N/A 2.480 in63.00 mm | Bolt Size N/A 0.276 in7.00 mm |
| 15N000259-304Q | N/A 63.00 Millimeter (mm) Minimum Size Heavy Duty T-Bolt Clamp | Width N/A 20.00 mm | Maximum Clamp Size N/A 2.677 in68.00 mm | Bolt Size N/A 0.276 in7.00 mm |
| 15N000260-304Q | N/A 68.00 Millimeter (mm) Minimum Size Heavy Duty T-Bolt Clamp | Width N/A 25.0 mm | Maximum Clamp Size N/A 2.874 in73.00 mm | Bolt Size N/A 0.315 in8.00 mm |
| 15N000261-304Q | N/A 73.00 Millimeter (mm) Minimum Size Heavy Duty T-Bolt Clamp | Width N/A 25.0 mm | Maximum Clamp Size N/A 3.110 in79.00 mm | Bolt Size N/A 0.315 in8.00 mm |
| 15N000262-304Q | N/A 79.00 Millimeter (mm) Minimum Size Heavy Duty T-Bolt Clamp | Width N/A 25.0 mm | Maximum Clamp Size N/A 3.346 in85.00 mm | Bolt Size N/A 0.315 in8.00 mm |
| 15N000263-304Q | N/A 85.00 Millimeter (mm) Minimum Size Heavy Duty T-Bolt Clamp | Width N/A 25.0 mm | Maximum Clamp Size N/A 3.583 in91.00 mm | Bolt Size N/A 0.315 in8.00 mm |
| 15N000264-304Q | N/A 91.00 Millimeter (mm) Minimum Size Heavy Duty T-Bolt Clamp | Width N/A 25.0 mm | Maximum Clamp Size N/A 3.819 in97.00 mm | Bolt Size N/A 0.315 in8.00 mm |
| 15N000265-304Q | N/A 97.00 Millimeter (mm) Minimum Size Heavy Duty T-Bolt Clamp | Width N/A 25.0 mm | Maximum Clamp Size N/A 4.094 in104.00 mm | Bolt Size N/A 0.315 in8.00 mm |
| 15N000266-304Q | N/A 104.00 Millimeter (mm) Minimum Size Heavy Duty T-Bolt Clamp | Width N/A 25.0 mm | Maximum Clamp Size N/A 4.409 in112.00 mm | Bolt Size N/A 0.315 in8.00 mm |
| 15N000267-304Q | N/A 112.00 Millimeter (mm) Minimum Size Heavy Duty T-Bolt Clamp | Width N/A 25.0 mm | Maximum Clamp Size N/A 4.764 in121.00 mm | Bolt Size N/A 0.315 in8.00 mm |
