BigHead® Bondable Unthreaded Stud Pins
Un-Threaded bigHead® Studs

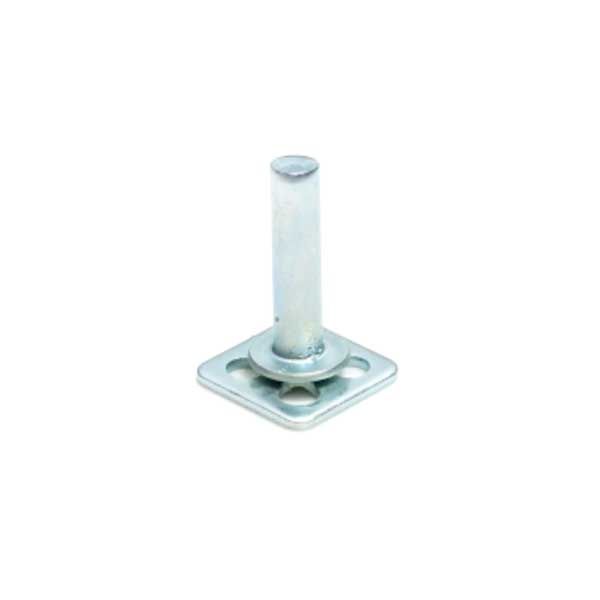

BigHead® Bondable Unthreaded Pins have large perforated heads and are manufactured in standard stud lengths from 12-50 mm, and standard head sizes in 15, 23 and 38 mm, in varying shapes. Additional custom shapes and sizes are readily available as well. All are available in Steel and several in Stainless Steel.
Item # |
Item Name |
Thread Size |
Head Size |
Stud Length |
---|---|---|---|---|
25BM4B15M4.75X12 | N/A BigHead® 12 Millimeter (mm) Stud Length Square Head Bondable Unthreaded Pin | Thread Size N/A M4.75 | Head Size N/A 15 x 15 mm | Stud Length N/A 12 mm |
25BM4B15M4.75X18 | N/A BigHead® 18 Millimeter (mm) Stud Length Square Head Bondable Unthreaded Pin | Thread Size N/A M4.75 | Head Size N/A 15 x 15 mm | Stud Length N/A 18 mm |
25BSM4B15M4.75X12 | N/A BigHead® 12 Millimeter (mm) Stud Length Square Head Bondable Unthreaded Pin | Thread Size N/A M4.75 | Head Size N/A 15 x 15 mm | Stud Length N/A 12 mm |
25BM4B23M4.75X12 | N/A BigHead® 12 Millimeter (mm) Stud Length Round Head Bondable Unthreaded Pin | Thread Size N/A M4.75 | Head Size N/A 23 mm | Stud Length N/A 12 mm |
25BM4B23M4.75X18 | N/A BigHead® 20 Millimeter (mm) Stud Length Round Head Bondable Unthreaded Pin | Thread Size N/A M4.75 | Head Size N/A 23 mm | Stud Length N/A 20 mm |
25BSM4B23M4.75X12 | N/A BigHead® 25 Millimeter (mm) Stud Length Round Head Bondable Unthreaded Pin | Thread Size N/A M4.75 | Head Size N/A 23 mm | Stud Length N/A 25 mm |
25BM4B38M4.75X25 | N/A BigHead® 25 Millimeter (mm) Stud Length Rounded Corners Head Bondable Unthreaded Pin | Thread Size N/A M4.75 | Head Size N/A 38 mm | Stud Length N/A 25 mm |
25BM4B38M4.75X40 | N/A BigHead® 40 Millimeter (mm) Stud Length Rounded Corners Head Bondable Unthreaded Pin | Thread Size N/A M4.75 | Head Size N/A 38 mm | Stud Length N/A 40 mm |
25BSM4B38M3X50 | N/A BigHead® 50 Millimeter (mm) Stud Length Rounded Corners Head Bondable Unthreaded Pin | Thread Size N/A M3 | Head Size N/A 38 mm | Stud Length N/A 50 mm |
25BM4B15M4.75X25 | N/A BigHead® 25 Millimeter (mm) Stud Length Rectangular Head Bondable Unthreaded Pin | Thread Size N/A M4.75 | Head Size N/A 38 x 15 mm | Stud Length N/A 25 mm |
25BM4B15M4.75X50 | N/A BigHead® 50 Millimeter (mm) Stud Length Rectangular Head Bondable Unthreaded Pin | Thread Size N/A M4.75 | Head Size N/A 38 x 15 mm | Stud Length N/A 50 mm |
