Step Down Electrical Wire Butt Splices
Wire Connectors and Disconnects

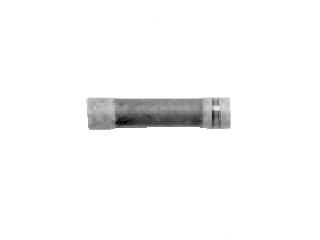

These Step Down Butt Splices are available in four wire range combinations from AWG 22 through 6 wire sizes, in insulated and non-insulated versions.
Item # |
Item Name |
Insulation Color |
CMA Range |
Wire Size |
|---|---|---|---|---|
| E19E09740001 | N/A 12/10 to 16/14 American Wire Gauge (AWG) Range Step Down Electrical Non Insulated Butt Splice | Insulation Color N/A Non-Insulated | CMA Range N/A 5 | Wire Size N/A 12/10 to 16/14 AWG |
| E19E09740002 | N/A 12/10 to 16/14 American Wire Gauge (AWG) Range Step Down Electrical Yellow with Blue Stripe Butt Splice | Insulation Color N/A Yellow with Blue Stripe | CMA Range N/A 5 | Wire Size N/A 12/10 to 16/14 AWG |
| E19E09740003 | N/A 16/14 to 22/18 American Wire Gauge (AWG) Range Step Down Electrical Non Insulated Butt Splice | Insulation Color N/A Non-Insulated | CMA Range N/A 2 | Wire Size N/A 16/14 to 22/18 AWG |
| E19E09740004 | N/A 16/14 to 22/18 American Wire Gauge (AWG) Range Step Down Electrical Blue with red Stripe Butt Splice | Insulation Color N/A Blue with Red Stripe | CMA Range N/A 2 | Wire Size N/A 16/14 to 22/18 AWG |
| E19E09740005 | N/A 6 to 8 American Wire Gauge (AWG) Range Step Down Electrical Non Insulated Butt Splice | Insulation Color N/A Non-Insulated | CMA Range N/A 20 | Wire Size N/A 6 to 8 AWG |
| E19E09740006 | N/A 6 to 8 American Wire Gauge (AWG) Range Step Down Electrical Blue with Red Stripe Butt Splice | Insulation Color N/A Blue with Red Stripe | CMA Range N/A 20 | Wire Size N/A 6 to 8 AWG |
| E19E09740007 | N/A 8 to 12/10 American Wire Gauge (AWG) Range Step Down Electrical Non Insulated Butt Splice | Insulation Color N/A Non-Insulated | CMA Range N/A 13 | Wire Size N/A 8 to 12/10 AWG |
| E19E09740008 | N/A 8 to 12/10 American Wire Gauge (AWG) Range Step Down Electrical Red with Yellow Stripe Butt Splice | Insulation Color N/A Red with Yellow Stripe | CMA Range N/A 13 | Wire Size N/A 8 to 12/10 AWG |
