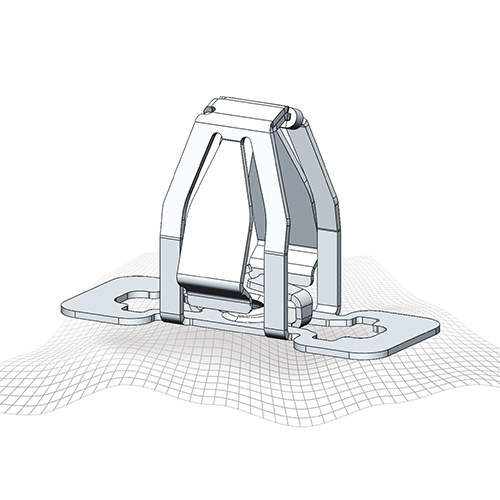

  • high-retention-clip.jpg
  • High Strength Trim Clips - 2
  • High Strength Trim Clips - 3
High Strength Trim Clips are excellent general-purpose fasteners. They are ideally suited for trim strips, access plates, or any light application where removability is important. High Strength Trim Clips are used in similar panel orientations as standard trim clips; however, they are used when panels are subjected to stronger or cyclical loading.
1 - 16 of 16 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Panel Thickness

Slot Length

Slot Width

N/A 1.0 to 1.4 Millimeter (mm) Panel Thickness High Strength Trim Clip N/A 1.0 to 1.4 mm N/A 25 mm N/A 7.9 to 8.1 mm
N/A 1.4 to 1.6 Millimeter (mm) Panel Thickness High Strength Trim Clip N/A 1.4 to 1.6 mm N/A 26.5 mm N/A 7.75 to 8.03 mm
N/A 2.3 to 2.8 Millimeter (mm) Panel Thickness High Strength Trim Clip N/A 2.3 to 2.8 mm N/A 23 mm N/A 8.25 to 8.75 mm
N/A 2.9 to 3.3 Millimeter (mm) Panel Thickness High Strength Trim Clip N/A 2.9 to 3.3 mm N/A 25 mm N/A 7.95 to 8.35 mm
N/A 0.8 to 3.0 Millimeter (mm) Panel Thickness High Strength Trim Clip N/A .8 to 3.0 mm N/A 20 mm N/A 5.75 to 6.03 mm
N/A 0.7 to 0.9 Millimeter (mm) Panel Thickness High Strength Trim Clip N/A 0.7 to 0.9 mm N/A 20 mm N/A 5.75 to 6.03 mm
N/A 0.7 to 1.2 Millimeter (mm) Panel Thickness High Strength Trim Clip N/A 0.7 to 1.2 mm N/A 25.4 mm N/A 7.75 to 8.03 mm
N/A 2.9 to 3.3 Millimeter (mm) Panel Thickness High Strength Trim Clip N/A 2.9 to 3.3 mm N/A 25.4 mm N/A 7.95 to 8.35 mm
N/A 2.4 to 2.6 Millimeter (mm) Panel Thickness High Strength Trim Clip N/A 2.4 to 2.6 mm N/A 25.4 mm N/A 8.25 to 8.75 mm
N/A High-Retention Clip N/A 1.1 to 3.0 mm N/A N/A
N/A H/R CLIP TRIM STL SLV MAGNI 565 N/A 0.7 to 2.0 mm N/A N/A
N/A CLIP HIGH RETENTION 4.2X1.5 STL S439 SLV N/A 1.0 to 1.2 mm N/A N/A
N/A CLIP HGH RETNTION 12.8X25X20SLTSTLZNC165 N/A 1.0 to 1.2 mm N/A N/A
N/A CLIP HI RTNG 10MM 3044 9K 96/24/SLV N/A 1.7 to 1.8 mm N/A N/A
N/A CLIP HI RETENTION VISOR 1.9PNL ST/ZN/SLV N/A 0.7 to 3.0 mm N/A N/A
N/A CLIP HI RTNG SAE 105 SPR STL .76X.25 N/A 0.7 to 2.5 mm N/A N/A
