22/10 American Wire Gauge (AWG) Block Spade Electrical Terminals
Ring Terminals

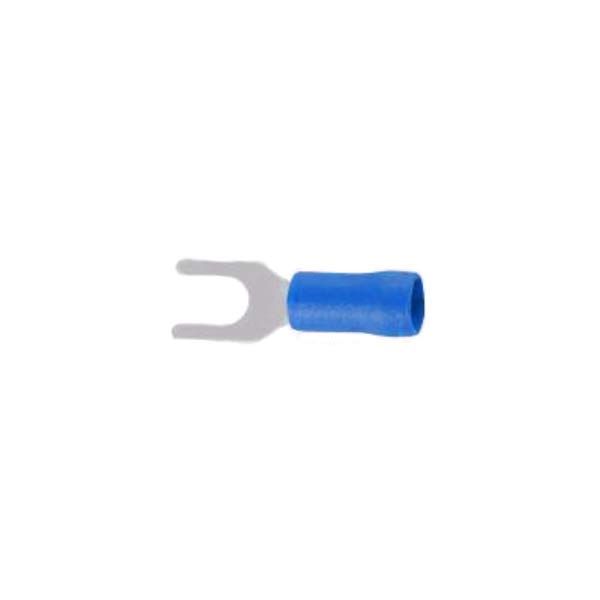

Block Spade Terminals are for use in terminal blocks or in barrier strips. Like standard Spade Terminals, they have an open end for easy insertion and handling; however, their tongue sides are longer and flat. So, they lie flush against the barrier portion of the terminal block, providing a secure, "locked-in" connection.
Item # |
Item Name |
Maximum Length |
Minimum Clearance |
Maximum Width |
|---|---|---|---|---|
| E19E09520001 | N/A 0.784 Inch (in) Maximum Length and 22/10 American Wire Gauge (AWG) Block Spade Non Insulated Butted Seam Electrical Terminal | Maximum Length N/A 0.784 in19.90 mm | Minimum Clearance N/A 0.305 in7.80 mm | Maximum Width N/A 0.330 in8.40 mm |
| E19E09520002 | N/A 1.075 Inch (in) Maximum Length and 22/10 American Wire Gauge (AWG) Block Spade Polyvinyl Chloride (PVC) Insulated Electrical Terminal | Maximum Length N/A 1.075 in27.30 mm | Minimum Clearance N/A 0.305 in7.80 mm | Maximum Width N/A 0.330 in8.40 mm |
| E19E09520003 | N/A 1.090 Inch (in) Maximum Length and 22/10 American Wire Gauge (AWG) Block Spade Nylon Insulated Metal Sleeve Electrical Terminal | Maximum Length N/A 1.090 in27.70 mm | Minimum Clearance N/A 0.305 in7.80 mm | Maximum Width N/A 0.330 in8.40 mm |
| E19E09520004 | N/A 0.784 Inch (in) Maximum Length and 22/10 American Wire Gauge (AWG) Block Spade Non Insulated Butted Seam Electrical Terminal | Maximum Length N/A 0.784 in19.90 mm | Minimum Clearance N/A 0.305 in7.80 mm | Maximum Width N/A 0.330 in8.40 mm |
| E19E09520005 | N/A 1.075 Inch (in) Maximum Length and 22/10 American Wire Gauge (AWG) Block Spade Polyvinyl Chloride (PVC) Insulated Electrical Terminal | Maximum Length N/A 1.075 in27.30 mm | Minimum Clearance N/A 0.305 in7.80 mm | Maximum Width N/A 0.330 in8.40 mm |
| E19E09520006 | N/A 0.784 Inch (in) Maximum Length and 22/10 American Wire Gauge (AWG) Block Spade Non Insulated Welded Seam Electrical Terminal | Maximum Length N/A 0.784 in19.90 mm | Minimum Clearance N/A 0.305 in7.80 mm | Maximum Width N/A 0.330 in8.40 mm |
| E19E09520007 | N/A 1.090 Inch (in) Maximum Length and 22/10 American Wire Gauge (AWG) Block Spade Nylon Insulated Metal Sleeve Electrical Terminal | Maximum Length N/A 1.090 in27.70 mm | Minimum Clearance N/A 0.305 in7.80 mm | Maximum Width N/A 0.330 in8.40 mm |
| E19E09520008 | N/A 0.784 Inch (in) Maximum Length and 22/10 American Wire Gauge (AWG) Block Spade Non Insulated Butted Seam Electrical Terminal | Maximum Length N/A 0.784 in19.90 mm | Minimum Clearance N/A 0.305 in7.80 mm | Maximum Width N/A 0.330 in8.40 mm |
| E19E09520009 | N/A 1.075 Inch (in) Maximum Length and 22/10 American Wire Gauge (AWG) Block Spade Polyvinyl Chloride (PVC) Insulated Electrical Terminal | Maximum Length N/A 1.075 in27.30 mm | Minimum Clearance N/A 0.305 in7.80 mm | Maximum Width N/A 0.330 in8.40 mm |
| E19E09520010 | N/A 0.784 Inch (in) Maximum Length and 22/10 American Wire Gauge (AWG) Block Spade Non Insulated Welded Seam Electrical Terminal | Maximum Length N/A 0.784 in19.90 mm | Minimum Clearance N/A 0.305 in7.80 mm | Maximum Width N/A 0.330 in8.40 mm |
| E19E09520011 | N/A 1.090 Inch (in) Maximum Length and 22/10 American Wire Gauge (AWG) Block Spade Nylon Insulated Metal Sleeve Electrical Terminal | Maximum Length N/A 1.090 in27.70 mm | Minimum Clearance N/A 0.305 in7.80 mm | Maximum Width N/A 0.330 in8.40 mm |
