Non-Threaded Tandem-Type Shaft Retainers
Shaft & Bolt Retainers

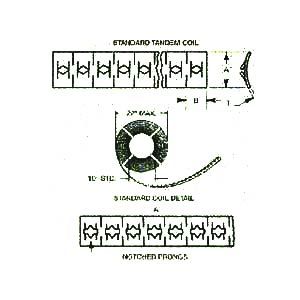

Non-Threaded, Tandem-Type Shaft Retainers consist of strips or coils of standard rectangular Push-On Speed Nut fasteners partially sheared between each one for quick separation. With a fastener always at the fingertips, assembly time is drastically reduced. No fumbling or selecting loose, single fasteners. No waste either - each Push-On Shaft Retainer is separated after it is attached to the stud.
Item # |
Item Name |
Material Thickness (Decimal) |
Width |
Length |
|---|---|---|---|---|
| 01335041-00Q | N/A 0.340 Inch (in) Width Non-Threaded Tandem-Type Shaft Retainer | Material Thickness (Decimal) N/A 0.017 in | Width N/A 0.34 in | Length N/A 0.440 in |
| 01C71496012000 | N/A 0.340 Inch (in) Width Non-Threaded Tandem-Type Shaft Retainer | Material Thickness (Decimal) N/A 0.012 in | Width N/A 0.34 in | Length N/A 0.440 in |
| 01C18437017000 | N/A 0.340 Inch (in) Width Non-Threaded Tandem-Type Shaft Retainer | Material Thickness (Decimal) N/A 0.017 in | Width N/A 0.34 in | Length N/A 0.440 in |
| 01C18437012000 | N/A 0.340 Inch (in) Width Non-Threaded Tandem-Type Shaft Retainer | Material Thickness (Decimal) N/A 0.012 in | Width N/A 0.34 in | Length N/A 0.440 in |
| 01C9174014000 | N/A 0.230 Inch (in) Width Non-Threaded Tandem-Type Shaft Retainer | Material Thickness (Decimal) N/A 0.014 in | Width N/A 0.230 in | Length N/A 0.420 in |
| 01C9174014 | N/A 0.230 Inch (in) Width Non-Threaded Tandem-Type Shaft Retainer | Material Thickness (Decimal) N/A 0.014 in | Width N/A 0.230 in | Length N/A 0.420 in |
| 01C19025SS014000 | N/A 0.380 Inch (in) Width Non-Threaded Tandem-Type Shaft Retainer | Material Thickness (Decimal) N/A 0.014 in | Width N/A 0.38 in | Length N/A 0.420 in |
| 01159041-01Q | N/A 0.310 Inch (in) Width Non-Threaded Tandem-Type Shaft Retainer | Material Thickness (Decimal) N/A 0.012 in | Width N/A 0.310 in | Length N/A 0.440 in |
| 01C15784012 | N/A 0.310 Inch (in) Width Non-Threaded Tandem-Type Shaft Retainer | Material Thickness (Decimal) N/A 0.012 in | Width N/A 0.310 in | Length N/A 0.440 in |
| 01C14260012000 | N/A 0.310 Inch (in) Width Non-Threaded Tandem-Type Shaft Retainer | Material Thickness (Decimal) N/A 0.012 in | Width N/A 0.310 in | Length N/A 0.420 in |
| 01C14260012 | N/A 0.310 Inch (in) Width Non-Threaded Tandem-Type Shaft Retainer | Material Thickness (Decimal) N/A 0.012 in | Width N/A 0.310 in | Length N/A 0.430 in |
| 01159019-06Q | N/A 0.310 Inch (in) Width Non-Threaded Tandem-Type Shaft Retainer | Material Thickness (Decimal) N/A 0.012 in | Width N/A 0.310 in | Length N/A 0.420 in |
| 01C15624012 | N/A 0.310 Inch (in) Width Non-Threaded Tandem-Type Shaft Retainer | Material Thickness (Decimal) N/A 0.012 in | Width N/A 0.310 in | Length N/A 0.420 in |
