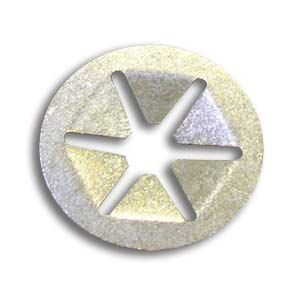

P-Type Round Flat Push-On Retainers
Shaft & Bolt Retainers
Round Flat Push-Ons have 6 or 8 retaining tabs that fit non-threaded studs from 1/16" - 3/8" in diameter. The tabs enable maximum hold without tools and can be used in a wide range of applications from automotive to small electrical and other devices.
Item # |
Item Name |
Material Thickness (Decimal) |
Outside Diameter |
Stud Diameter |
---|---|---|---|---|
11C100016-00Q | N/A P-Type 0.063 Inch (in) Stud Diameter Flat Round Push-On Retainer | Material Thickness (Decimal) N/A 0.01 in | Outside Diameter N/A 0.195 in | Stud Diameter N/A 0.063 in |
11C100016-01Q | N/A P-Type 0.063 Inch (in) Stud Diameter Flat Round Push-On Retainer | Material Thickness (Decimal) N/A 0.01 in | Outside Diameter N/A 0.195 in | Stud Diameter N/A 0.063 in |
11C100024-03Q | N/A P-Type 0.117 Inch (in) Stud Diameter Flat Round Push-On Retainer | Material Thickness (Decimal) N/A 0.013 in | Outside Diameter N/A 3/8 in | Stud Diameter N/A 0.117 in |
11C100058-119Q | N/A P-Type 0.125 Inch (in) Stud Diameter Flat Round Push-On Retainer | Material Thickness (Decimal) N/A .015 in | Outside Diameter N/A 0.312 in | Stud Diameter N/A 0.125 in |
11C100009-07Q | N/A P-Type 0.125 Inch (in) Stud Diameter Flat Round Push-On Retainer | Material Thickness (Decimal) N/A 0.013 in | Outside Diameter N/A 3/8 in | Stud Diameter N/A 0.125 in |
11C616004-00Q | N/A P-Type 0.125 Inch (in) Stud Diameter Flat Round Push-On Retainer | Material Thickness (Decimal) N/A 0.013 in | Outside Diameter N/A 3/8 in | Stud Diameter N/A 0.125 in |
11C616004-01Q | N/A P-Type 0.125 Inch (in) Stud Diameter Flat Round Push-On Retainer | Material Thickness (Decimal) N/A 0.013 in | Outside Diameter N/A 3/8 in | Stud Diameter N/A 0.125 in |
11C616004-03Q | N/A P-Type 0.125 Inch (in) Stud Diameter Flat Round Push-On Retainer | Material Thickness (Decimal) N/A 0.013 in | Outside Diameter N/A 3/8 in | Stud Diameter N/A 0.125 in |
11C616004-119 | N/A P-Type 0.125 Inch (in) Stud Diameter Flat Round Push-On Retainer | Material Thickness (Decimal) N/A 0.013 in | Outside Diameter N/A 3/8 in | Stud Diameter N/A 0.125 in |
70008529-00Q | N/A P-Type 0.156 Inch (in) Stud Diameter Flat Round Push-On Retainer | Material Thickness (Decimal) N/A 0.01 in | Outside Diameter N/A 0.437 in | Stud Diameter N/A 0.156 in |
70008529-119 | N/A P-Type 0.156 Inch (in) Stud Diameter Flat Round Push-On Retainer | Material Thickness (Decimal) N/A 0.01 in | Outside Diameter N/A 0.437 in | Stud Diameter N/A 0.156 in |
70008529 | N/A P-Type 0.156 Inch (in) Stud Diameter Flat Round Push-On Retainer | Material Thickness (Decimal) N/A 0.01 in | Outside Diameter N/A 0.437 in | Stud Diameter N/A 0.156 in |
11C616007-00Q | N/A P-Type 0.156 Inch (in) Stud Diameter Flat Round Push-On Retainer | Material Thickness (Decimal) N/A 0.013 in | Outside Diameter N/A 0.437 in | Stud Diameter N/A 0.156 in |
11C616007-01Q | N/A P-Type 0.156 Inch (in) Stud Diameter Flat Round Push-On Retainer | Material Thickness (Decimal) N/A 0.013 in | Outside Diameter N/A 0.437 in | Stud Diameter N/A 0.156 in |
11C616007-03Q | N/A P-Type 0.156 Inch (in) Stud Diameter Flat Round Push-On Retainer | Material Thickness (Decimal) N/A 0.013 in | Outside Diameter N/A 0.437 in | Stud Diameter N/A 0.156 in |
11C616007-119 | N/A P-Type 0.156 Inch (in) Stud Diameter Flat Round Push-On Retainer | Material Thickness (Decimal) N/A 0.013 in | Outside Diameter N/A 0.437 in | Stud Diameter N/A 0.156 in |
11C616007-36 | N/A P-Type 0.156 Inch (in) Stud Diameter Flat Round Push-On Retainer | Material Thickness (Decimal) N/A 0.013 in | Outside Diameter N/A 0.437 in | Stud Diameter N/A 0.156 in |
11C616007-CH2Q | N/A P-Type 0.156 Inch (in) Stud Diameter Flat Round Push-On Retainer | Material Thickness (Decimal) N/A 0.013 in | Outside Diameter N/A 0.437 in | Stud Diameter N/A 0.156 in |
11C616007-G4Q | N/A P-Type 0.156 Inch (in) Stud Diameter Flat Round Push-On Retainer | Material Thickness (Decimal) N/A 0.013 in | Outside Diameter N/A 0.437 in | Stud Diameter N/A 0.156 in |
11C616008-00Q | N/A P-Type 0.187 Inch (in) Stud Diameter Flat Round Push-On Retainer | Material Thickness (Decimal) N/A 0.01 in | Outside Diameter N/A 0.437 in | Stud Diameter N/A 0.187 in |
11C616008-03Q | N/A P-Type 0.187 Inch (in) Stud Diameter Flat Round Push-On Retainer | Material Thickness (Decimal) N/A 0.01 in | Outside Diameter N/A 0.437 in | Stud Diameter N/A 0.187 in |
11C616008-06Q | N/A P-Type 0.187 Inch (in) Stud Diameter Flat Round Push-On Retainer | Material Thickness (Decimal) N/A 0.01 in | Outside Diameter N/A 0.437 in | Stud Diameter N/A 0.187 in |
11C616008-119 | N/A P-Type 0.187 Inch (in) Stud Diameter Flat Round Push-On Retainer | Material Thickness (Decimal) N/A 0.01 in | Outside Diameter N/A 0.437 in | Stud Diameter N/A 0.187 in |
11P616008-01Q | N/A P-Type 0.187 Inch (in) Stud Diameter Flat Round Push-On Retainer | Material Thickness (Decimal) N/A 0.01 in | Outside Diameter N/A 0.437 in | Stud Diameter N/A 0.187 in |
11C616009-00 | N/A P-Type 0.187 Inch (in) Stud Diameter Flat Round Push-On Retainer | Material Thickness (Decimal) N/A .015 in | Outside Diameter N/A 0.437 in | Stud Diameter N/A 0.187 in |
