Push-On Thin Wall Shaft Retainers On EFC International

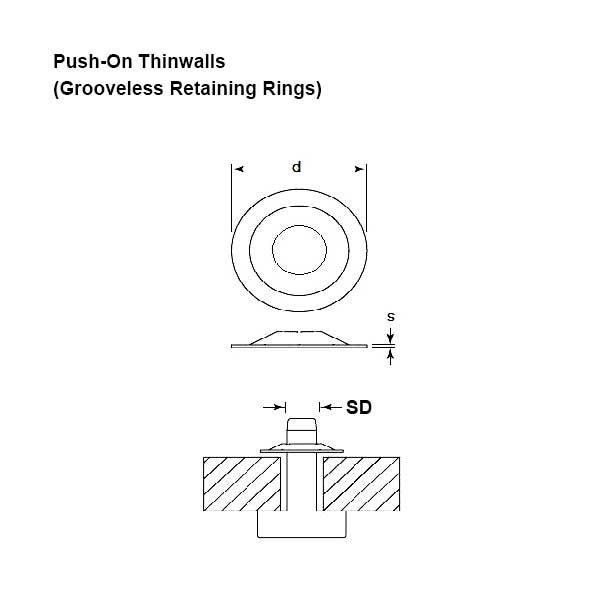

These Push-ons are non-removable thin wall shaft retainers that press over studs or shafts to become an integral part of an axial application. They replace snap or bearing rings, cotter pins, staking, swaging, spinning, heat-forming, ultrasonic, coining, cementing, or upsetting, to eliminate high-cost operations.

1 - 25 of 67 | Results Per Page | View | Unit of Measure

1 2 3

Request Information Compare Items

Item #	Item Name	Material Thickness (Decimal)	Hole Diameter	Part Diameter

01567140-00Q	N/A 0.300 Inch (in) Part Diameter Push-On Thin Wall Shaft Retainer	N/A 0.022 in	N/A 0.192 in	N/A 0.300 in
01T9922016227	N/A 0.437 Inch (in) Part Diameter Push-On Thin Wall Shaft Retainer	N/A 0.014 in	N/A 0.150 in	N/A 0.437 in
70003081	N/A 0.750 Inch (in) Part Diameter Push-On Thin Wall Shaft Retainer	N/A 0.025 in	N/A 0.237 in	N/A 0.75 in
01567099-00Q	N/A 0.405 Inch (in) Part Diameter Push-On Thin Wall Shaft Retainer	N/A 0.022 in	N/A	N/A 0.405 in
01567103-1900Q	N/A 0.305 Inch (in) Part Diameter Push-On Thin Wall Shaft Retainer	N/A .006 in	N/A 0.116 in	N/A 0.305 in
01567104-1900Q	N/A 0.437 Inch (in) Part Diameter Push-On Thin Wall Shaft Retainer	N/A 0.01 in	N/A 0.244 in	N/A 0.437 in
01567110-1900Q	N/A 0.125 Inch (in) Part Diameter Push-On Thin Wall Shaft Retainer	N/A .006 in	N/A 0.047 in	N/A 0.125 in
01567111-1900Q	N/A 0.312 Inch (in) Part Diameter Push-On Thin Wall Shaft Retainer	N/A 0.01 in	N/A 0.116 in	N/A 0.312 in
01567121-1900Q	N/A 0.750 Inch (in) Part Diameter Push-On Thin Wall Shaft Retainer	N/A 0.008 in	N/A 0.176 in	N/A 0.75 in
01567123-1900Q	N/A 0.325 Inch (in) Part Diameter Push-On Thin Wall Shaft Retainer	N/A .006 in	N/A	N/A 0.325 in
01567126-1900Q	N/A 0.375 Inch (in) Part Diameter Push-On Thin Wall Shaft Retainer	N/A 0.012 in	N/A 0.176 in	N/A 0.375 in
01567128-1900Q	N/A 0.150 Inch (in) Part Diameter Push-On Thin Wall Shaft Retainer	N/A .006 in	N/A 0.058 in	N/A 0.150 in
01567136-1900Q	N/A 0.375 Inch (in) Part Diameter Push-On Thin Wall Shaft Retainer	N/A .006 in	N/A	N/A 0.375 in
01567137-1900Q	N/A 0.625 Inch (in) Part Diameter Push-On Thin Wall Shaft Retainer	N/A 0.01 in	N/A 0.244 in	N/A 0.625 in
01567151-1900Q	N/A 0.437 Inch (in) Part Diameter Push-On Thin Wall Shaft Retainer	N/A 0.01 in	N/A 0.207 in	N/A 0.437 in
01568100-1900Q	N/A 0.260 Inch (in) Part Diameter Push-On Thin Wall Shaft Retainer	N/A 0.008 in	N/A 0.133 in	N/A 0.260 in
70003114	N/A 0.287 Inch (in) Part Diameter Push-On Thin Wall Shaft Retainer	N/A .006 in	N/A 0.176 in	N/A 0.287 in
01500139-1900Q	N/A 0.194 Inch (in) Part Diameter Push-On Thin Wall Shaft Retainer	N/A 0.012 in	N/A 0.116 in	N/A 0.194 in
01567177-1900Q	N/A 0.325 Inch (in) Part Diameter Push-On Thin Wall Shaft Retainer	N/A .006 in	N/A 0.144 in	N/A 0.325 in
01500477-1900	N/A 0.437 Inch (in) Part Diameter Push-On Thin Wall Shaft Retainer	N/A 0.017 in	N/A	N/A 0.437 in
01500451-1900Q	N/A 0.531 Inch (in) Part Diameter Push-On Thin Wall Shaft Retainer	N/A 0.017 in	N/A 0.227 in	N/A 0.531 in
01T99220SS-204-576	N/A 0.375 Inch (in) Part Diameter Push-On Thin Wall Shaft Retainer	N/A 0.012 in	N/A	N/A 0.375 in
70003125	N/A 0.245 Inch (in) Part Diameter Push-On Thin Wall Shaft Retainer	N/A .006 in	N/A 0.116 in	N/A 0.245 in
0156760-1900Q	N/A 0.218 Inch (in) Part Diameter Push-On Thin Wall Shaft Retainer	N/A 0.008 in	N/A 0.087 in	N/A 0.218 in
0156766-1900Q	N/A 0.260 Inch (in) Part Diameter Push-On Thin Wall Shaft Retainer	N/A 0.008 in	N/A 0.144 in	N/A 0.260 in
