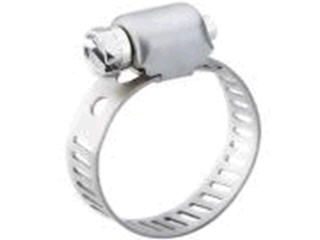

Light Duty Worm Gear Clamps
Worm Gear Clamps
These Light Duty Worm Gear Clamps are made from 316 Stainless Steel, are 100% Mechanical Interlock with no weld spots to corrode, and are perfect for Marine use. They have a 1/2" Band, 5/16" Hex Slotted Screw, and are available in clamp ranges from 3/8-7".
Item # |
Item Name |
Minimum Clamp Size |
Hex Head Screw Size |
Band Width (Decimal) |
|---|---|---|---|---|
| E0512490001 | N/A 0.875 Inch (in) Maximum Clamp Size Light Duty Worm Gear Clamp | Minimum Clamp Size N/A 0.375 in | Hex Head Screw Size N/A 5/16 in | Band Width (Decimal) N/A 0.500 in |
| E0512490002 | N/A 1.000 Inch (in) Maximum Clamp Size Light Duty Worm Gear Clamp | Minimum Clamp Size N/A 0.437 in | Hex Head Screw Size N/A 5/16 in | Band Width (Decimal) N/A 0.500 in |
| E0512490003 | N/A 0.062 Inch (in) Maximum Clamp Size Light Duty Worm Gear Clamp | Minimum Clamp Size N/A 0.500 in | Hex Head Screw Size N/A 5/16 in | Band Width (Decimal) N/A 0.500 in |
| E0512490004 | N/A 1.250 Inch (in) Maximum Clamp Size Light Duty Worm Gear Clamp | Minimum Clamp Size N/A 0.500 in | Hex Head Screw Size N/A 5/16 in | Band Width (Decimal) N/A 0.500 in |
| E0512490005 | N/A 1.500 Inch (in) Maximum Clamp Size Light Duty Worm Gear Clamp | Minimum Clamp Size N/A 0.687 in | Hex Head Screw Size N/A 5/16 in | Band Width (Decimal) N/A 0.500 in |
| E0512490006 | N/A 1.750 Inch (in) Maximum Clamp Size Light Duty Worm Gear Clamp | Minimum Clamp Size N/A 0.750 in | Hex Head Screw Size N/A 5/16 in | Band Width (Decimal) N/A 0.500 in |
| E0512490007 | N/A 2.000 Inch (in) Maximum Clamp Size Light Duty Worm Gear Clamp | Minimum Clamp Size N/A 1.000 in | Hex Head Screw Size N/A 5/16 in | Band Width (Decimal) N/A 0.500 in |
| E0512490008 | N/A 2.250 Inch (in) Maximum Clamp Size Light Duty Worm Gear Clamp | Minimum Clamp Size N/A 1.250 in | Hex Head Screw Size N/A 5/16 in | Band Width (Decimal) N/A 0.500 in |
| E0512490009 | N/A 2.500 Inch (in) Maximum Clamp Size Light Duty Worm Gear Clamp | Minimum Clamp Size N/A 1.500 in | Hex Head Screw Size N/A 5/16 in | Band Width (Decimal) N/A 0.500 in |
| E0512490010 | N/A 2.750 Inch (in) Maximum Clamp Size Light Duty Worm Gear Clamp | Minimum Clamp Size N/A 1.750 in | Hex Head Screw Size N/A 5/16 in | Band Width (Decimal) N/A 0.500 in |
| E0512490011 | N/A 3.250 Inch (in) Maximum Clamp Size Light Duty Worm Gear Clamp | Minimum Clamp Size N/A 2.250 in | Hex Head Screw Size N/A 5/16 in | Band Width (Decimal) N/A 0.500 in |
| E0512490012 | N/A 3.000 Inch (in) Maximum Clamp Size Light Duty Worm Gear Clamp | Minimum Clamp Size N/A 2.000 in | Hex Head Screw Size N/A 5/16 in | Band Width (Decimal) N/A 0.500 in |
| E0512490013 | N/A 3.500 Inch (in) Maximum Clamp Size Light Duty Worm Gear Clamp | Minimum Clamp Size N/A 2.500 in | Hex Head Screw Size N/A 5/16 in | Band Width (Decimal) N/A 0.500 in |
| E0512490014 | N/A 3.750 Inch (in) Maximum Clamp Size Light Duty Worm Gear Clamp | Minimum Clamp Size N/A 2.750 in | Hex Head Screw Size N/A 5/16 in | Band Width (Decimal) N/A 0.500 in |
| E0512490015 | N/A 4.000 Inch (in) Maximum Clamp Size Light Duty Worm Gear Clamp | Minimum Clamp Size N/A 3.000 in | Hex Head Screw Size N/A 5/16 in | Band Width (Decimal) N/A 0.500 in |
| E0512490016 | N/A 4.250 Inch (in) Maximum Clamp Size Light Duty Worm Gear Clamp | Minimum Clamp Size N/A 3.250 in | Hex Head Screw Size N/A 5/16 in | Band Width (Decimal) N/A 0.500 in |
| E0512490017 | N/A 4.500 Inch (in) Maximum Clamp Size Light Duty Worm Gear Clamp | Minimum Clamp Size N/A 2.500 in | Hex Head Screw Size N/A 5/16 in | Band Width (Decimal) N/A 0.500 in |
| E0512490018 | N/A 5.000 Inch (in) Maximum Clamp Size Light Duty Worm Gear Clamp | Minimum Clamp Size N/A 3.000 in | Hex Head Screw Size N/A 5/16 in | Band Width (Decimal) N/A 0.500 in |
| E0512490019 | N/A 5.500 Inch (in) Maximum Clamp Size Light Duty Worm Gear Clamp | Minimum Clamp Size N/A 0.625 in | Hex Head Screw Size N/A 5/16 in | Band Width (Decimal) N/A 0.500 in |
| E0512490020 | N/A 6.000 Inch (in) Maximum Clamp Size Light Duty Worm Gear Clamp | Minimum Clamp Size N/A 4.000 in | Hex Head Screw Size N/A 5/16 in | Band Width (Decimal) N/A 0.500 in |
| E0512490021 | N/A 6.500 Inch (in) Maximum Clamp Size Light Duty Worm Gear Clamp | Minimum Clamp Size N/A 4.500 in | Hex Head Screw Size N/A 5/16 in | Band Width (Decimal) N/A 0.500 in |
| E0512490022 | N/A 7.000 Inch (in) Maximum Clamp Size Light Duty Worm Gear Clamp | Minimum Clamp Size N/A 5.000 in | Hex Head Screw Size N/A 5/16 in | Band Width (Decimal) N/A 0.500 in |
