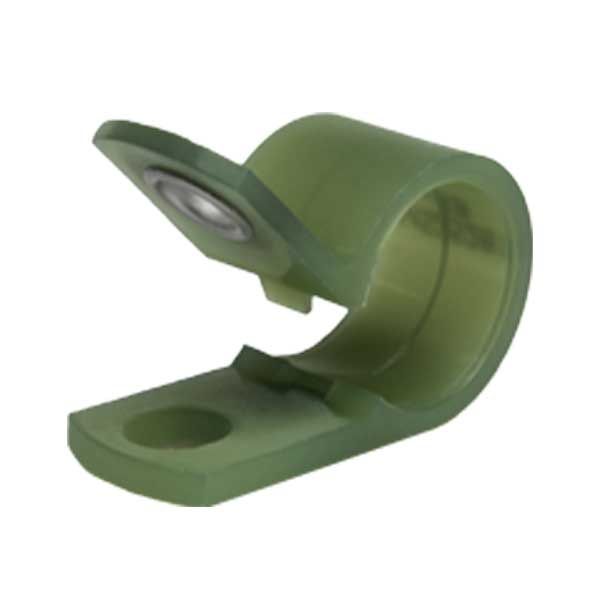

P-Type Thermoplastic Routing Clamps with Aluminum Eyelet
Routing Clamps
This Thermoplastic P-Clamp has Aluminum Eyelets for extra support and holds 1.125" (28.60) diameter cable bundles.
Item # |
Item Name |
Hole Center to End |
Width |
Nominal Diameter (Decimal) |
|---|---|---|---|---|
| 34300489-TP10 | N/A 4.80 Millimeter (mm) Bundle Diameter P-Type Thermoplastic Routing Clamp with Aluminum Eyelet | Hole Center to End N/A 0.250 in6.40 mm | Width N/A 0.503 in12.80 mm | Nominal Diameter (Decimal) N/A 0.188 in4.80 mm |
| 34300490-TP10 | N/A 6.40 Millimeter (mm) Bundle Diameter P-Type Thermoplastic Routing Clamp with Aluminum Eyelet | Hole Center to End N/A 0.250 in6.40 mm | Width N/A 0.503 in12.80 mm | Nominal Diameter (Decimal) N/A 0.25 in6.40 mm |
| 34300491-TP10 | N/A 7.90 Millimeter (mm) Bundle Diameter P-Type Thermoplastic Routing Clamp with Aluminum Eyelet | Hole Center to End N/A 0.250 in6.40 mm | Width N/A 0.503 in12.80 mm | Nominal Diameter (Decimal) N/A 0.312 in7.90 mm |
| 34300492-TP10 | N/A 9.52 Millimeter (mm) Bundle Diameter P-Type Thermoplastic Routing Clamp with Aluminum Eyelet | Hole Center to End N/A 0.250 in6.40 mm | Width N/A 0.503 in12.80 mm | Nominal Diameter (Decimal) N/A 0.375 in9.50 mm |
| 34300493-TP10 | N/A 11.10 Millimeter (mm) Bundle Diameter P-Type Thermoplastic Routing Clamp with Aluminum Eyelet | Hole Center to End N/A 0.250 in6.40 mm | Width N/A 0.503 in12.80 mm | Nominal Diameter (Decimal) N/A 0.438 in11.10 mm |
| 34300494-TP10 | N/A 12.70 Millimeter (mm) Bundle Diameter P-Type Thermoplastic Routing Clamp with Aluminum Eyelet | Hole Center to End N/A 0.250 in6.40 mm | Width N/A 0.503 in12.80 mm | Nominal Diameter (Decimal) N/A 0.5 in12.70 mm |
| 34300495-TP10 | N/A 15.90 Millimeter (mm) Bundle Diameter P-Type Thermoplastic Routing Clamp with Aluminum Eyelet | Hole Center to End N/A 0.285 in7.20 mm | Width N/A 0.553 in14.05 mm | Nominal Diameter (Decimal) N/A 0.625 in15.90 mm |
| 34300496-TP10 | N/A 17.50 Millimeter (mm) Bundle Diameter P-Type Thermoplastic Routing Clamp with Aluminum Eyelet | Hole Center to End N/A 0.285 in7.20 mm | Width N/A 0.553 in14.05 mm | Nominal Diameter (Decimal) N/A 0.688 in17.50 mm |
| 34300497-TP10 | N/A 19.05 Millimeter (mm) Bundle Diameter P-Type Thermoplastic Routing Clamp with Aluminum Eyelet | Hole Center to End N/A 0.285 in7.20 mm | Width N/A 0.553 in14.05 mm | Nominal Diameter (Decimal) N/A 0.75 in19.05 mm |
| 34300498-TP10 | N/A 22.20 Millimeter (mm) Bundle Diameter P-Type Thermoplastic Routing Clamp with Aluminum Eyelet | Hole Center to End N/A 0.285 in7.20 mm | Width N/A 0.553 in14.05 mm | Nominal Diameter (Decimal) N/A 0.875 in22.20 mm |
| 34300499-TP10 | N/A 25.40 Millimeter (mm) Bundle Diameter P-Type Thermoplastic Routing Clamp with Aluminum Eyelet | Hole Center to End N/A 0.285 in7.20 mm | Width N/A 0.553 in14.05 mm | Nominal Diameter (Decimal) N/A 10.000 in25.40 mm |
| 34300500-TP10 | N/A 28.60 Millimeter (mm) Bundle Diameter P-Type Thermoplastic Routing Clamp with Aluminum Eyelet | Hole Center to End N/A 0.285 in7.20 mm | Width N/A 0.553 in14.05 mm | Nominal Diameter (Decimal) N/A 10.125 in28.60 mm |
